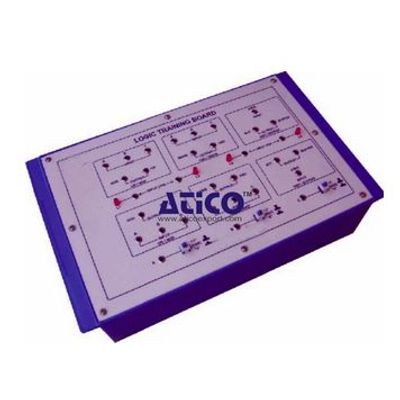

Atico Scientific - Model AEET001 -Logic Training Board

SHARE

The board consists of the following built-in parts :  5V D.C. at 500mA, IC Regulated Power Supply internally connected. Two, 3-input NAND gates followed by an inverter to give 3-input AND/NAND gates. Two, 3-input NOR gates followed by an inverter to give 3-input OR/NOR gates.

Most popular related searches
inverter

  • Two, NOT gates followed by another NOT gate to give BUFFER outputs.
  • Switches for logic selection.
  • LEDs for visual indication of status.
  • Adequate no. of other Electronic Components.
  • Mains ON/OFF switch, Fuse and Jewel light.
  • The unit is operative on 230V ±10% at 50Hz A.C. Mains.
  • Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre.
  • Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections / observation of waveforms.
  • Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
  • Weight : 3 Kg. (Approx.)
  •  Dimension : W 340 x H 110 x D 210
