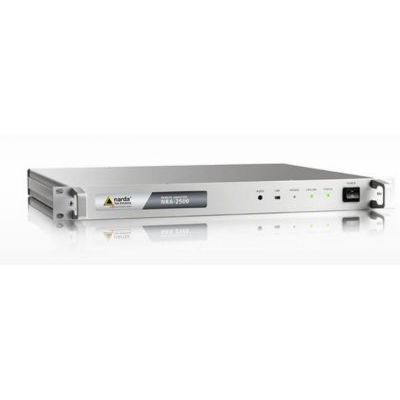

Narda - Model NRA-2500 - Low-Cost Spectrum Analyzer
Remote Spectrum Analyzer in 19` rack format. This instrument provides all you need for satellite tracking, antenna alignment and carrier monitoring. Ideal for use in DSNG vehicles and trailers as well as in teleports and VSAT stations. NRA-2500 can easily be integrated into Control & Management systems. The Ethernet interface and ASCII plain text remote control commands allow the NRA to be integrated into practically any measurement environment. Large quantities of data can be transmitted rapidly in binary format.
-
Frequency resolution (RBW) from 1 kHz to 1 MHz
-
30 dB input attenuator settable in 1 dB steps
-
Display range from -110 dBm to +1 dBm (RBW = 1 kHz)
-
DANL < -140 dBm/Hz
-
< 1.5 dB level measurement uncertainty at 15°C to 30°C
-
High resolution spectrum with up to approx. 600,000 measurement points
-
Detector for fixed resolution (Bins), selectable data compression with +Peak-, -Peak- or RMS storage for lower data transfer rates
-
ASCII or binary data transfer
-
Multi-Channel Power option: Level measurement in up to 500 freely definable channels
-
Level Meter (Zero Span) option: Resolution bandwidths from 100 Hz to 32 MHz
- Frequency range 5 MHz – 2.5 GHz
- Measurement speed up to 12 GHz/s
- Power consumption < 20 W
- Operating temperature -10° to +50° C
- Audio output AM, FM, USB, LSB, CW
- Reference input 10 MHz
- Dimensions 19`` x 1.75`` x 14.3`` (482 x 45 x 362 mm)
- Weight < 5 kg
INRADIOS: Communication System Monitoring (CSM) Software
RadioInspector: Software for Radio Spectrum Monitoring
Krypto500: Signal Demodulation and Decoding Software
Skylink: Remote Spectrum Analyzer Monitor System
skyline: DataMiner Spectrum Analysis
HILTRON: DSNG Monitor&Control Software HMCS
TES AMERICA:TESMonitor®
SatService:sat-nms MNC Monitoring & Control System
Others are being developed
