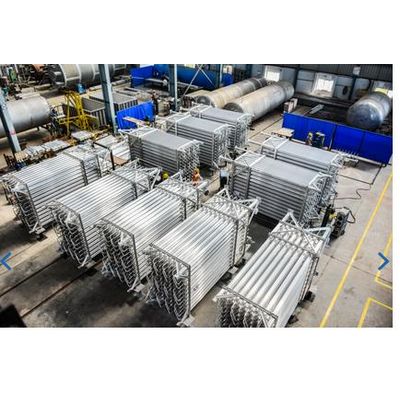

Cryogas - Low & Medium Pressure Cryogenic Vaporizers

Cryogenic Liquids are produced at liquefaction plants and transported to end users. These liquids are then vaporized / re-gasified for different industrial and commercial applications. In wanner countries ambient heat is available all 24 hours & 36S days. This free energy is used for vaporization and therefore popularly called as Natural Draft Cryogenic Vaporizers

CRYOGAS also offers interconnecting piping precisely designed while taking care of contraction and expansion w.r.t. stress analysis.

Equalised distribution of cryogenic liquid into different vaporizer units in a bank is extremely important to avoid preferential flow of cryogenic liquid and eliminating the possibility of preferential short pass. This also helps utilize full capacity of Ambient Cryogenic vaporizers and ensures modular vaporization at all times.

Accurate design of headers manifolding within the vaporizer enable complete utilization of entire vaporization circuit & avoids preferential flow, control the pressure drop and optimize fin configuration.

Preferential placement of fins i.e. 4. 8 and 12 in different vaporization zones ensures maximization of vaporizer capacity, at the same time uses aluminium mass at the light place, reduce defrost cycle time and enhance excellent in the super heating zone.

• MODEL Cryogenic Vaporizer OF Model
• TYPES OF VAPORIZATION/RE-GASlFrCATlON Ambient Air Natural Draft Cryogenic Vaporization
• OPERATING FLUIDS LOX, UN. LAR. LHe, LNG, LH,. ICO,
• CAPACITY OF EACH VAPORIZERS MODULE 10 to 5000 NmJ/Hour 6 Higher on request
• BANKOF VAPORIZERS Two or more vaporizers are systematically clubbed to operate in series or parallel for higher flow rates and duty cycles.
• PRESSURE RANGE 1 bar(g) to 90 bartg) as standard
• VAPORIZER CONSTRUCTION All aluminium or aluminium with SS lining
• DESIGN CODES ASMS U stamp or CE marking offered on request
• PRESSURE DROP OPTIONS Apart from standard pressure drop, ultra-low pressure drop. All parallel units are available on request.
• MUlTlfOlD CONFIGURATION Single pass all series, parallel series combination, all parallel manifolding
• FRAME CONSTRUCTION Aluminium alloy 6061 T6, SS304 (CS on request). SS3116. etc.
• FIN MODULATION 4.8 & 12 fins precisely placed in different heating zons for maximised modular vaporization
