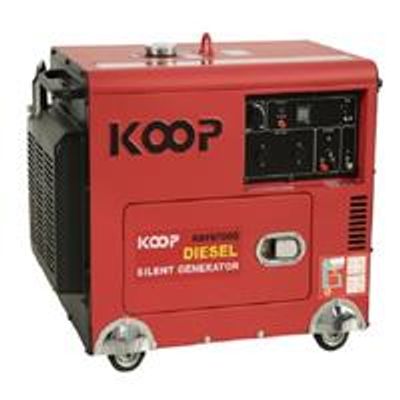

Koop - Model KDF6700Q(-3) -Low Noise Diesel Generator

Two-stage muffler device

Scientific damping effect, patent two-stage muffler silencer, advanced air-flue design and muffler device.

Strong power

With Koop four-stoke diesel engine, new tip-clearance fuel pump and bottom inertia injection technology, makes burning full and power strong.

High conversion efficiency

100% copper alternator, class F insulation, high conversion efficiency, smart AVR controller ensures stable voltage and less voltage waveform distortion

Preheating device

With air-preheating device, it can be easily started at low temperature.

Optional items

• Remote control, more control distance and control as your kindly heart.
• Remoter: control anytime anywhere freely.
• ATS Control to make the city power and generator change more easy.
• ATS: automatic transfer from city power and gen-set power.
• It can be used Smart digital panel to make the generator more easy and safe using.
• Intelligent digital control panel: with overload, over voltage, over current and low oil pressure protection function.

• Rated Frequency[Hz] 50 60
• Rated Voltage[V] 220,230,240,110/220,115/230,120/240,220/380,230/400,240/415
• Rated Output Power[KVA] 4.5(5.6)     5.0(6.3)
• Max Output Power[Kva] 5.0(6.3)      5.5(6.9)
• DC  Output    12V      8.3A
• Phase Number    Single Phase / Three Phase
• Excitation Mode  Self-excitation , brush
• Power FactorΦ   1.0(0.8)
• Insulation Grade F
• Fuel Tank Capacity[L] 14.5
• Engine Model     KD186FAE
• Starting System    Electric Starting
• Engine Type 1-Cylinder ,4-Stroke, Air-cooled,Veritica
• Broke * Stroke[mm] 86*72
• Displacement      0.418L
• Compression Ratio   19.5：1
• Rated Rotation Speed[rpm] 3000 3600
• Rated Power[Kw] 5.8    6.6
• Lube[L] 1.65
• Fuel Type      0#(summer), -10#(winter), diesel oil
• Lube    SAE10W30 ( above CD grade )
• Low Oil Pressure Alarm System With
• Optional Standard    ATS
• Remote control
• Digital Smart  Panel
• Overall Diemension [mm](L*W*H) 910*530*740
• Net Weight [Kg]   149
