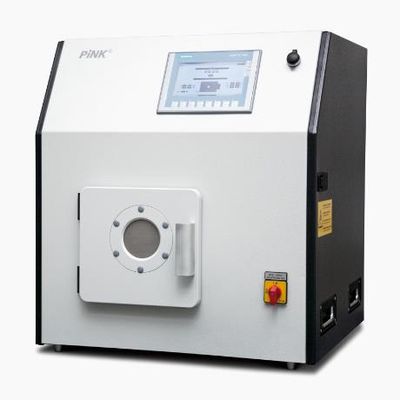

Pink - Model V6-G - Low-Pressure Plasma System
The standard system V6-G is designed as a tabletop unit for industrial small series production as well as for the low-pressure plasma treatment in R&D laboratories. It can be used for the surface treatment processes cleaning and activation. The integrated professional PLC control serves as a storage for definable processes and parameters.
Most popular related searches
- Type of system: Tabletop unit
- Dimensions of the chamber (W x D x H): 170 x 200 x 170 mm
- Microwave power: 50-300 W
- Gas inlets with mass flow control: 1
- Power supply: 230 V, 50/60 Hz
- Power input (without pump): 0.5 kVA
- Dimensions of the system (W x D x H): 640 x 710 x 710 mm
- Additional gas inlets: 2
- Additional excitation frequencies
- (40 kHz, 13.56 MHz): –
- Soft start / slow vent: YES
- Lateral microwave feed-in: YES
- Rotary table: –
- Rotary drum: YES
- Pullout door: –
- Automatic door opening: –
- USB port
- Ethernet interface
- Remote maintenance (VPN)
- Microwave source (2.45 GHz)
- Swing door
