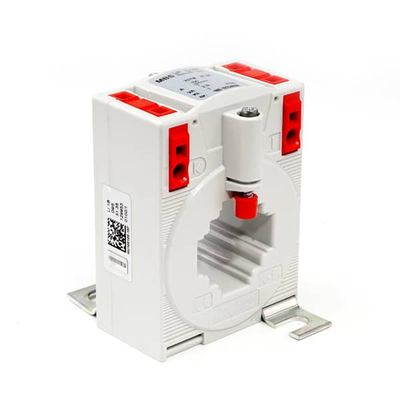

MBS - Model XCTB 31.35 - Low-Voltage Current Transformer for Harmonics Measurement
FromMBS AG
The XCTB 31.35 is a low-voltage current transformer designed specifically for measuring harmonics up to 20 kHz. This product is capable of accommodating a wide range of primary currents, from 50 to 750 amperes, and offers secondary outputs of 1 or 5 amperes. The XCTB series is available in multiple accuracy classes, including 0.2, 0.2S, 0.5, 0.5S, and 1, ensuring precise and reliable performance. The transformer is ideal for applications that require accurate harmonics measurements in various electrical systems, including industrial and commercial settings. Its robust design and versatile current capacity make it suitable for integration into advanced power monitoring and quality analysis systems.
Most popular related searches
low voltage current transformer
current transformer
low voltage transformer
current voltage transformer
electrical system
power monitoring
power quality analysis system
power quality monitoring system
power quality analysis
power quality system
- Bus bar 1 in mm : 30x10
- Bus bar 2 in mm : 2x20x5
- Round conductor in mm : 26
- Width in mm : 61
- Height in mm : 81
- Depth in mm : 53
- Snap-on mounting :
- Sealed shutters :
- Sealed shutters 2 :
- Therm. nominal continuous current Icth: 1.2 x Ipr
- Therm. nominal short-time current Ith: 60 x Ipr, 1 s
- Max. operating voltage Um: 1,2 kV
- Isolation test voltage: 6 kV, Ueff, 50 Hz, 1 min
- Lightning impulse voltage: 12 kV, 1.2/50 µs
- Nominal rated frequency: 50/60 Hz
- Isolation class: E
- Primary Current : 50, 60, 75, 80, 100, 125, 150, 200, 250, 300, 400, 500, 600, 750
- Secondary Current : 1, 5
- Burden (VA) : 0,5, 1, 1,25, 1,5, 2,5, 5
- Accuracy Class : 0,2, 0,2S, 0,5, 0,5S, 1
