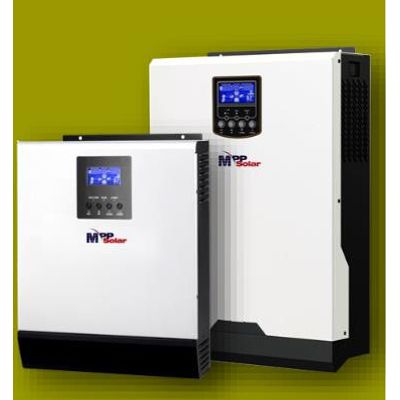

MPP - Model PIP-LV 110-120V Series -Low Voltage Off Grid Solar Inverter

Available from 800w to 2400w, all models in this series come with either MPPT or PWM solar charger and also offer free monitoring on PC which is bundled with purchase.  Stackable feature up to 6 units maximum is available only on 2424LV-HS and 2424LV-MSD, increasing max output capacity up to 2.4KW x 6 = 14.4KW.  Below is a simple diagram illustrating parallel setup, and parallel kit (sold separately) is also required on each inverter unit.

• NEW!  1012LV-MS is now available as an updated PF1.0 version of the previous 812LV-MS. Maximum output is now 1KW.

• 110V / 120V adjustable output design for low voltage standard markets like USA, Canada
• Stackable — supports parallel operation up to 6 units (only on 2424LV-HS, 2424LV-MSD)
• Pure sine wave inverter with built–in max 50A PWM or max up to 80A MPPT solar controller

• 50Hz & 60Hz support
• Selectable AC input volt range based on load type
• Programmable parameters
• Max up to 60A utility charging
• Adjustable bulk & float charging voltage
• Support either grid or generator input
• Genset starter dry contact
• Overload and short circuit protection
• Lightweight, easy to install
• FREE monitoring software
• LCD Display + LED indicators
• RS232/USB communication interface
