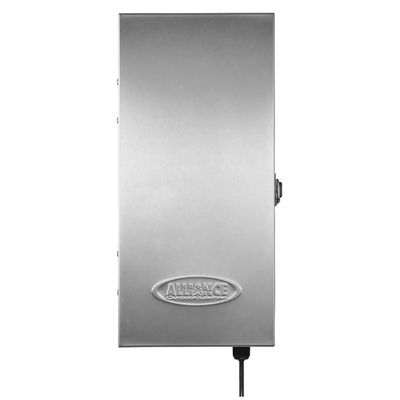

Alliance - Model XF300 -Low-Voltage Outdoor Lighting System
The heart of a low-voltage outdoor lighting system is the transformer. Our rugged professional-grade multi-tap transformer sets the standard for ease of installation and adaptability to standard and app-based controls (also available packaged with our iTimerPRO).
Most popular related searches
lighting system
low voltage system
industrial control transformer
power testing
power test
power transformer
- Fully-potted, insulated, single-core transformer
- Easy on/off, secondary breaker switches on each common tap
- Two common lug terminals
- Amp loop to check the primary amperage on the transformer
- Accepts plug-in-timers, has direct photocell connection
- Angled terminal strip for easy wire connections, eliminates blind spots
- Heavy-duty stainless-steel cabinet with integrated mounting bar, lockable
- Removable bottom panel, 5 knockouts for wire connections
- Integrated short circuit and overload protection
- Includes 5’ grounded heavy-gauge power cord
- ETL tested, in conformance to ANSI/UL 1838
- 300 watts with 4 taps: 12, 13, 14, 15 volts, Maximum total amps: 3A. Use any combination of terminal lugs but do not exceed transformer’s rated wattage on any lug.
- HEIGHT ON WALL: 16"
- WIDTH: 7.25"
- DEPTH: 5.12"
