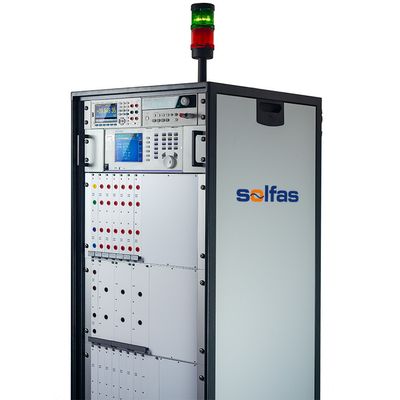

Sofas - Model TTS1000L Series - Low Voltage Power Transformer Test System

SHARE
The TTS1000L Series Low Voltage Power Transformer Test System provides a comprehensive testing solution for both single-phase and three-phase power transformers. Featuring a sine inverter power supply, it accommodates transformers up to 2000kVA, utilizing advanced frequency converter techniques to produce a sinusoidal output voltage with minimal harmonic distortion. The system supports a broad output frequency range of 50-400Hz, useful for AC-induced voltage testing. Notably, the Solfas Test Suite 2 software enhances the testing process through flexible operations and efficient reporting, allowing for repetitive test plans and automatic report generation. Safety features align with EN50191 standards to protect users from electrical hazards. Additionally, the system's ease of remote operation via a control unit PC ensures quick and safe testing. Various testing options, including winding resistance and insulation resistance measurements, are available, catering to diverse requirements. System accessories further optimize installation.
Most popular related searches
low voltage power
transformer testing
power transformer
low voltage transformer
power testing system
power testing
power test
voltage test transformer
voltage testing system
low voltage test

With the innovative and efficient frequency converter technique, a sinusoidal output voltage with low harmonic is generated.
The output frequency range is 50-400Hz, this allows AC induced voltage tests. The wide voltage and current range and the precise regulation are the ideal solution for routine testing of power transformers.




Solfas Test Suite 2 software for TTS1000L series guarantees a maximum of flexibility and a minimum of interventions to keep the test duration as short as possible.
After transformer connection the TTS Transformer test system is completely operated via a control unit PC. This allows safe, quick comfortable testing from remote. Test plans for each transformer type allow the exact repetition of individual test sequencences. Test reports are automatically generated and stored.
The TTS1000L makes transformer testing easier, faster and more safe.

  • No Load Loss and Current

  • Short Circuit Impedance and Load Loss

  • Induced AC Voltage

  • Voltage Ratio and Vector Group

  • Winding Resistance

  • High Voltage AC
