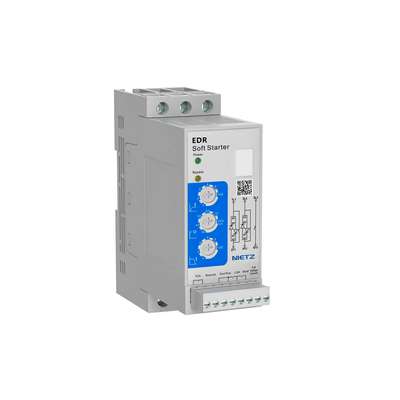

Nietz - Model EDR Series -Low Voltage Soft Starter
EDR is a cost-effective soft starter that integrates intelligent control, industrial aesthetics, and safe output, specifically designed for 0.75-11kW asynchronous squirrel-cage motors. It serves as an excellent replacement for traditional contactors and star-delta starters. While ensuring sufficient current capacity, the product adopts an book-style design with a thickness of only 48mm, allowing for quick installation on standard DIN rails.
Most popular related searches
-
1 active signal output (24V DC, max. 20mA) to indicate the end of the starting process.
-
1 passive running signal relay output, which closes when the soft starter is in the starting, bypass, or soft-stop state
- Built-in bypass for all models
- Two-phase thyristor control, with another relay installed in the direct-connection main circuit to ensure no voltage output when stopped, enhancing safety(Compared with traditional two-phase thyristor control soft starter)
- Book-style design for all models, with a width of only 48mm
- Optional internal control power supply (no external control power required) or external 24V DC control power supply
- All models support quick DIN rail mounting
- Supports Boost start for loads with high mechanical friction
- Power supply: 220–480 VDC, 50/60 Hz
- Control power: I: Built-in (no external control power required, directly powered from the main supply) E: External 24V DC control power supply
- Rated current: 1,5–22 ?
- Initial voltage: 30–80%
- Acceleration / Deceleration time: 1–10 s
- Starting frequency: <5 starts per hour (minimum 5-minute interval between starts) , 5–10 starts for light or no-load conditions
- Operating Ambient Temperature: -10 to 40 °C
