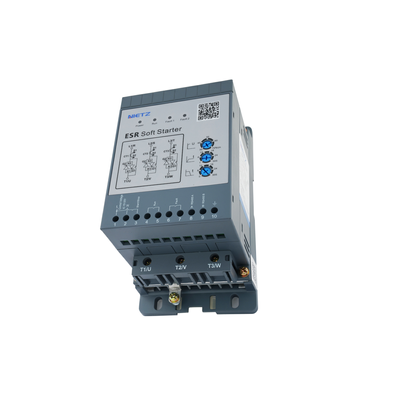

Nietz - Model ESR Series -Low Voltage Soft Starter
The ESR Soft Starter provides a cost effective solution for small to medium size motors. It is designed with a simple interface for easy installation, Compact & Easy to Install; Built-in Bypass, motor protection and standard Modbus communication protocol that allows for remote monitoring giving the user a reduction of downtime and improved productivity; ESR series is perfect replacement for ABB, Schneider, Delta, AuCom and etc.
Most popular related searches
- Rated Main Voltage: 200-525VAC 50/60Hz
- Control Source Voltage: 100~240VAC 24VDC
- Rated Main Current: 1.5A……150A
- Power Range: 1.1~75 kW
- Initial voltage: 30%~70%
- Start Slope: 1~30 Sec
- Stop Slope: 0~30 Sec
- Bypass: Built in
- Communication: RS-485 (optional card)
- Overload: 3xIe 7 Sec; Valid for 50 % on time and 50 % off time
- Times of start per hour: <5, 5-10 (light load or no-load)
- Overload grade: 10A
- Operation Environmental temperature: 0 ? to + 50 ? (32 ºF to 122 ºF)
- Store temperature: -40 ? to + 70 ? (-40 ºF to 158 ºF)
- Maximum altitude: 1000m (3280 ft)
- Ingress Protection grade: IP21
- Fans
- Compressors
- Exchangers
- Pumps
- Conveyors
