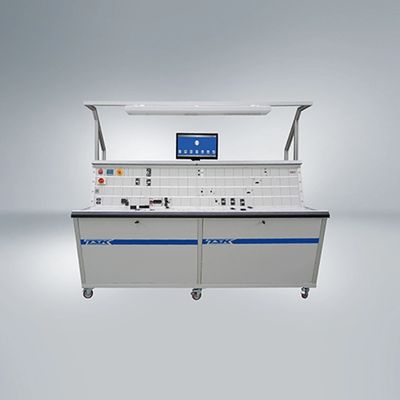

Komax - Model TS1600-ALU -Low Voltage Test System
The TS1600-ALU test system features a standard horizontal and additional vertical test grid, allowing for a higher number of test adapters and improved handling during adaptation. The TS1600-ALU test system meets the high technical requirements of quality assurance in the cable assembly and automotive supplier industry with its arrangement of test adapters in a horizontal and vertical test grid.The variable positioning of the test adapters make the system adaptable to different types of wire harnesses. The testing unit provides a comfortable working position for operators with its test grid inclination of 15° horizontally and 10° vertically. Additionally, the system allows for convenient adaptation, enabling operators to quickly adjust the test adapters for different wire harnesses. Other models and sizes are available on request. The TS1600-ALU test system can be combined with all cable testers and can be configured according to customer requirements.
Metric
TS1600-ALU 1500x700
- Dimensions/height min.: 1320 mm
- Dimensions/height max.: 1370 mm
- Dimensions/width min.: 1650 mm
- Dimensions/width max.: 1910 mm
- Depth max.: 1050 mm
- Total weight, without test adapter (modules) approx.: 200 kg
- Number of system segments: 2
- Voltage (AC), input min.: 90 V
- Voltage (AC), input max.: 260 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 60 Hz
- Voltage, input, connector: Safety plug (240 V, 16 A, 3-pin)
- Voltage, input, connector optional: CEE plug (400 V, 16 A, 5-pin)
- power supply 1, voltage (DC): 24/12 V
- power supply 1, current (DC) max.: 40 A
- Total power, standard (depending on the number of power supply units) max.: 1500 W
- Ambient temperature, operation min.: +10 °C
- Ambient temperature, operation max.: +40 °C
- Ambient temperature, storage min.: -10 °C
- Ambient temperature, storage max.: +60 °C
- Air humidity non-condensing min.: 40 %
- Air humidity non-condensing max.: 75 %
- Emission sound pressure level (according to DIN 45635) max.: 80 dB
- Protection class: IP 10
- Operating height (feet above sea level) max.: 2000 m
- Test grid width: 1500 mm
- Test grid depth, horizontal: 400 mm
- Test grid depth, vertical: 300 mm
- Test grid area: 1.05 m²
- max. number of test adapters (modules) to be installed for size100x100: 105
- Test grid inclination, horizontal: 15 °
- Test grid inclination, vertical: 10 °
- Maximum permissible load on the test grid: 1,1 / 100 g/cm²
- Test points min.: 128
- Test points max.: 512
- Cable tester CT30ix: yes
- Operating pressure (according to ISO 8573-1: 5/5/4) min.: 5 bar
- Operating pressure (according to ISO 8573-1: 5/5/4) max.: 7 bar
- Compressed-air connection: Kupplungsstecker Rectus G1/4 26AF AW13 bar
- Pneumatic connections min.: 40
- Pneumatic connections max.: 160
Imperial
TS1600-ALU 59.05x15.74in
- Dimensions/height min.: 51.96 in
- Dimensions/height max.: 53.93 in
- Dimensions/width min.: 64.96 in
- Dimensions/width max.: 75.19 in
- Depth max.: 41.33 in
- Total weight, without test adapter (modules) approx.: 440.92 lb
- Number of system segments: 2
- Voltage (AC), input min.: 90 V
- Voltage (AC), input max.: 260 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 60 Hz
- Voltage, input, connector: Safety plug (240 V, 16 A, 3-pin)
- Voltage, input, connector optional: CEE plug (400 V, 16 A, 5-pin)
- power supply 1, voltage (DC): 24/12 V
- power supply 1, current (DC) max.: 40 A
- Total power, standard (depending on the number of power supply units) max.: 1500 W
- Ambient temperature, operation min.: +50 °F
- Ambient temperature, operation max.: +104 °F
- Ambient temperature, storage min.: +14 °F
- Ambient temperature, storage max.: +140 °F
- Air humidity non-condensing min.: 40 %
- Air humidity non-condensing max.: 75 %
- Emission sound pressure level (according to DIN 45635) max.: 80 dB
- Protection class: IP 10
- Operating height (feet above sea level) max.: 6561 ft
- Test grid width: 59.05 in
- Test grid depth, horizontal: 15.74 in
- Test grid depth, vertical: 11.81 in
- Test grid area: 11.3 ft²
- max. number of test adapters (modules) to be installed for size100x100: 105
- Test grid inclination, horizontal: 15 °
- Test grid inclination, vertical: 10 °
- Maximum permissible load on the test grid: 2,42 / 15,5 lb/in²
- Test points min.: 128
- Test points max.: 512
- Cable tester CT30ix: yes
- Operating pressure (according to ISO 8573-1: 5/5/4) min.: 72.51 psi
- Operating pressure (according to ISO 8573-1: 5/5/4) max.: 101.52 psi
- Pneumatic connections min.: 40
- Pneumatic connections max.: 160
