Komax - Model TS1300-ALU - Low Voltage Testing

SHARE

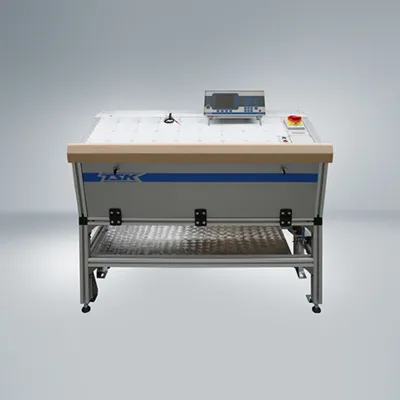

The smallest test systems TS1300-ALU with extra wide testing width are particularly well suited for the convenient and reliable testing of smaller cable and wire harnesses. The on-bench solutions TS 1300-ALU can be used flexibly due to their compact size with a wider testing field. They are equipped with frequently used test components and can also be modified according to the customer’s wishes. The ergonomically designed housing offers a test grid inclination of 15° and allows convenient adaptation, safe testing and reliable logging. The broader testing field allows even better variable positioning of the test adapters with customer-specific connector contour. The standardized interfaces make handling the systems easy and testing safe and efficient. Other models and sizes are available on request.

Most popular related searches

low voltage test

power supply unit

DC power supply

voltage testing system

TS1300-ALU 1000x300 mm

Metric

Dimensions/height min.: 960 mm
Dimensions/height max.: 1000 mm
Dimensions/width min.: 810 mm
Dimensions/width max.: 1030 mm
Depth max.: 410 mm
Total weight, without test adapter (modules) approx.: 70 kg
Number of system segments: 1
Voltage (AC), input min.: 100 V
Voltage (AC), input max.: 240 V
Frequency, input min.: 50 Hz
Frequency, input max.: 60 Hz
Voltage, input, connector: Safety plug (240 V, 16 A, 3-pin)
power supply 1, voltage (DC): 24 V
power supply 1, current (DC) max.: 4 A
Total power, standard (depending on the number of power supply units) max.: 200 W
Ambient temperature, operation min.: +10 °C
Ambient temperature, operation max.: +40 °C
Ambient temperature, storage min.: -10 °C
Ambient temperature, storage max.: +60 °C
Air humidity non-condensing min.: 40 %
Air humidity non-condensing max.: 75 %
Emission sound pressure level (according to DIN 45635) max.: 80 dB
Protection class: IP 10
Operating height (feet above sea level) max.: 2000 m
Test grid width: 1000 mm
Test grid depth, horizontal: 300 mm
Test grid area: 0.3 m²
max. number of test adapters (modules) to be installed for size100x100: 30
Test grid inclination, horizontal: 15 °
Maximum permissible load on the test grid: 1,1 / 100 g/cm²
Test points min.: 128
Test points max.: 640
Cable tester CT30ix: yes
Operating pressure (according to ISO 8573-1: 5/5/4) min.: 5 bar
Operating pressure (according to ISO 8573-1: 5/5/4) max.: 7 bar
Compressed-air connection: Kupplungsstecker Rectus G1/4 26AF AW13 bar
Pneumatic connections min.: 40
Pneumatic connections max.: 40
Accuracy: 0.5 N
Raspberry PI: 3
Push Pull force measured value max.: 30 N
Push Pull force measured value min.: 1 N
