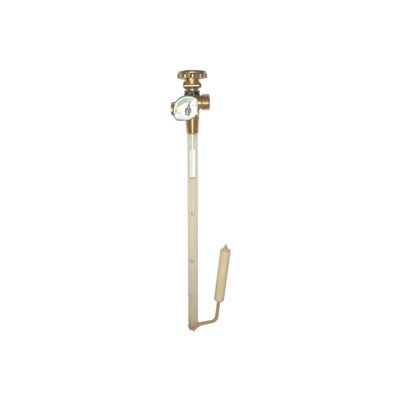

Rotarex-SRG - Model Series 456 - LPG Cylinder Valve with Level Gauge

SHARE

LPG cylinder valve with level gauge. Key advantages: Manual handwheel operation. Perfect gas tightness under extreme service pressure and temperatures. Pressure relief device in accordance with EU regulation EN 13957. with integrated float level gauge with PRV.

Most popular related searches
LPG cylinder valve
  • Gas Type : LPG, Propane, Butane, Propane/Butane mixtures
  • Upper Limit Working Pressure : depends on safety valve pressure bar : 0 PSI
  • Safety Relief Pressure : 26, 35
  • Lower Operating Temperature Limit : -25 Celsius : -13 Fahrenheit
  • Upper Operating Temperature Limit : 70 Celsius : 158 Fahrenheit
  • Inlet connection : W 19,8 DIN 477, W 19,8 DIN 477 TF
  • Outlet connection : W 21 8x1/14 - LH DIN 477 Nr. 2, W 21 8x1/14 - LH DIN 477 Nr. 1
  • Body material : Brass
  • O-ring material : Rubber Nitrile
