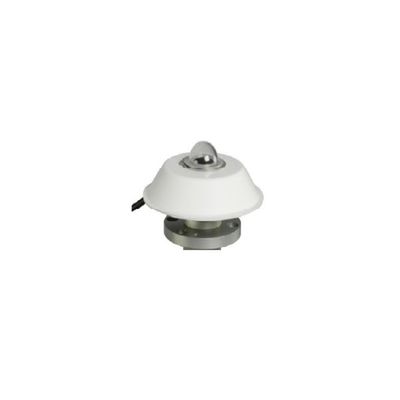

LSI LASTEM - Model DPA053 -Pyranometers
Radiometer for solar irradiance measurement, according to Second calss as ISO 9060 and WMO No:8 Standards. This sensors is good compromise for basic meteorological and agrometeorological and solar energy applications.
Most popular related searches
solar irradiance monitoring
second class pyranometer
pyranometer
photovoltaic plant
solar energy
photovoltaic monitoring
- Spectrally flat Class C ( Second Class) Pyranometer
- Compliance with IEC 61724-1:2017
- Calibration traceability to WRR
- Ideal Instrument in PV Plants Performance monitoring and metrological networks
- Specifications: LSI LASTEM Pyranometers - DPA053
- Output: μV
- Sensitivity: 10÷15 μV/W/m²
- Impedance: 40±3?
- Calibration Certificate: Included
- Measuring Range: 0 ÷ 2000 W/m²
- Operative Temperature: -40÷80°C
- Viewing field: 2Πsr
- Spectral Range: 285÷3000nm
- Cable: L=5 m Included
- ISO 9060 2018 Classification: Class C ( Second Class)
- IEC 61724-1:2017 Classification: Class C
- Stability (drift/year): <1.5%
- Non-Linearity: 1.5%
- Directional response: 30 W/m²
- Sensitivity/year variation: <2%
- Temperature response: <7%
- Calibration traceability: To WRR
- Recommended recalibration: Every 2 years
- General Information:
- Housing - Anodized aluminum
- Protection rate - IP-66
- Anti-radiation shield - Included
