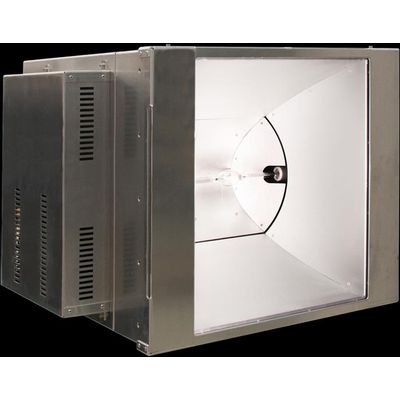

SolarConstantModel MHG MIL - Luminaires for Solar Simulation Systems

SHARE

Atlas SolarConstant MIL has been specially designed for diurnal solar cycling according to the US military standard MIL-STD-810G Test Method 505.5 Solar Radiation (Procedure I). SolarConstant MIL utilizes unique multi-lamp concept making it ideal for solar diurnal cycling as defined in MIL-STD-810G, Test Method 505.5 Solar Radiation (Procedure I).) - determination of heat produced by 24-hour cycles of solar radiation. Also other industries such as agricultural science for plant growth studies make use of diurnal cycling.

Most popular related searches
  • Special design for diurnal cycling
  • Optical outdoor filter
  • Meets standard MIL-STD-810G
  • Wide, symmetric beam angle for high-uniformity solutions
  • Modular design for customized system arrays of any size

  • Lamp: Multiple MHG lamps in a rotating selector
  • Spectrum: Global radiation similar CIE 85 (Tab. 4)
  • Outdoor Filter: UV cut-on at approximately 290 nm
  • Average lamp lifetime: 750 h
  • Dimensions (W x H x D): 524 mm x 680 mm x 830 mm
  • Weight: 50 kg
