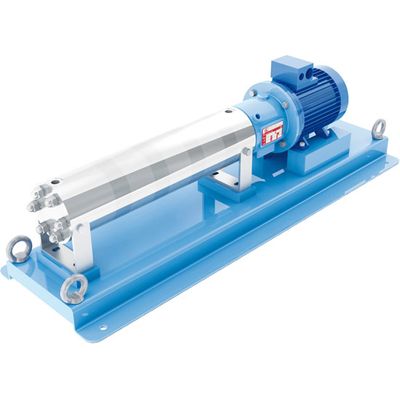

M Pumps - Model V Modular -Sealless Sliding Vane Multistage Modular Pump
FromM Pumps S.r.l.
Sealless sliding vane multistage modular pump with permanent magnet drive system, no mechanical seal. Close-coupled confi guration allows conventional drivers to be mounted directly to pump frame. No base, coupling or guards are required for this mounting.
Most popular related searches
V MODULAR pumps range meets the requirements on custom-built solutions in the process industry, in the following areas:
Chemical and pharmaceutical, thermoregulation circuits, ammonia and CO2 cooling systems, transfer of aggressive, highly corrosive liquids, paper, food processing, plant engineering and construction. For all industries that choose a pumping leak-free and low maintenance for use continuous (abandon of mechanical seal pumps).
- Pumps of the series V MODULAR are horizontal sliding vane, volumetric pumps.
- Close coupled pumps are furnished with standard motors. Leak-free back pull-out assemblies with magnetic drive meet the requirements with regard to job safety, operational reliability and environmental protection.
- Magnetic drive rear casing standard materials are SS 316
- Pump Casing & Cover are made in Stainless Steel 316 solid bar to obtain high quality components within strict tolerances.
- Capacity: Up to 8.8 gpm (2000 l/h)
- Delivery Head: Up to 696 psi (48 bar)
- Speed: 750/ 950 rpm
- Press. Syst: 363 psi (standard) [25 bar] 2175 psi (HP version) [150 bar]
- Temperature: From - 147 °F(- 100°C) To 392 °F (+ 200°C )
