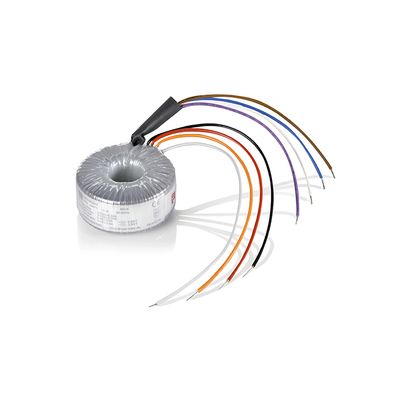

Model RKD 20/2x24 - Mains Transformer
General Data: Power 15 - 3,000 VA. Efficiency up to 98 %. Maximum ambient temperature 104 °F / 40 °C. Insulation class B. Degree of protection IP 00. Rated output voltage 2 x 6 - 2 x 115 Vac. Rated input voltage 2 x 115 Vac.
Most popular related searches
isolation transformer
transformer isolation
power transformer
industrial control transformer
power generation
- Low weight
- Outstanding temperature behavior due to low magnetic leakage field
- Minimum size at high power
- Minimal no-load losses
- Dual input and dual output voltage for series or parallel connection
- Very low noise field
Standards
- Mains transformer
to: VDE 0570 Teil 2-1, DIN EN 61558-2-1, EN 61558-2-1, IEC 61558-2-1, UL 5085-1/-2, CSA 22.2 No.66 - Isolating transformer
to: VDE 0570 Part 2-4, DIN EN 61558-2-4, EN 61558-2-4, IEC 61558-2-4, UL 5085-1/-2, CSA 22.2 No.66 - Safety isolating transformer
to: VDE 0570 Part 2-6, DIN EN 61558-2-6, EN 61558-2-6, IEC 61558-2-6, UL 5085-1/-2, CSA 22.2 No.66
Approvals
- UL 5085-1/-2, CSA 22.2 No.66
- As a safety isolating transformer for the safe electrical isolation of the input and output sides. The transformer is suitable for creating SELV and PELV circuits because of the limit on the output voltage.
- As a mains transformer for adjustment of the voltage and simple electrical isolation.
- As an isolating transformer for the safe electrical isolation of the input and output sides. The transformer may be used to set up protective separation as a protective measure in accordance with VDE 0100.
