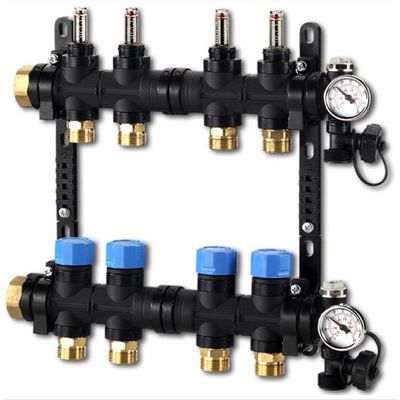

Monoesa -Â Model AORP - Manifold for Heating and Cooling Systems
Performances: Fluids accepted: water, glycol solutions, % glycol: max 50%, Working temperature: 5+55 °C, Max temperature: 90 °C at 3 bar, Working pressure: 0+6 bar, Max pressure: 10 bar, Burst pressure: > 22 bar at room temperature, > 15 bar at 50 °C.
Most popular related searches
Supply port c/w flowmeter model ITRGMD05FLORP
- Flow-rate range: 0+51/min
- Deviation percentage: +15%
- Max torque to adjust the flow-rate: 1 N-m (please use the proper adjusting key)
- Kv flow coefficient when fully open: 0.98
- Kv flow coefficient at 5 I/min: 0.29
- Kv flow coefficient at 4 I/min: 0.24
- Kv flow coefficient at 3 I/min: 0.18
- Kv flow coefficient at 2 I/min: 0.12
- Kv flow coefficient at 1 I/min: 0.06
Return port for thermo actuator model RTEV-ORP:
- Kv flow coefficient 1.56
- Stroke of inox pin 3.5 mm.
Materials:
- PA12 - PA12 GF30 - PPS - GF30 - Peroxidic EPDM - PA6,6 - PA 6,6 GF30 - PP - AISI - POM - Grivory - Brass
