NK - Model NOVEC -Marine Extinguishing System

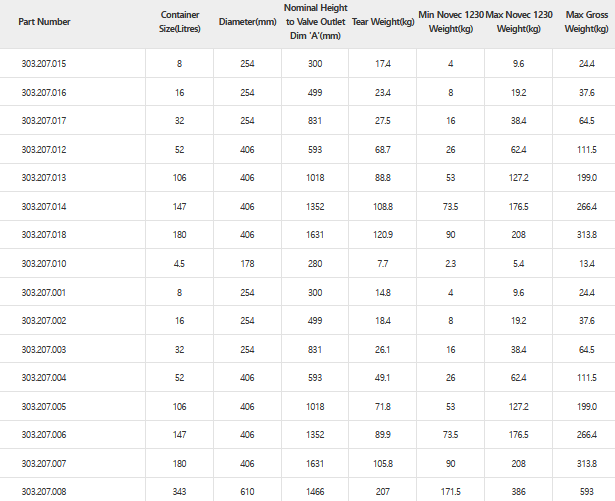

Each assembly may be provided with a range of fills to suit the design requirements. After filling, the containers are superpressursed with dry nitrogen to 25 bar +5%(at a temperature of 20?). The maximum filling density for Novec 1230 is 1.2kg/litre and the minumum is 0.5kg/litre. Dimensions and weights of each assembly are shown in Tables 15 and 16.
