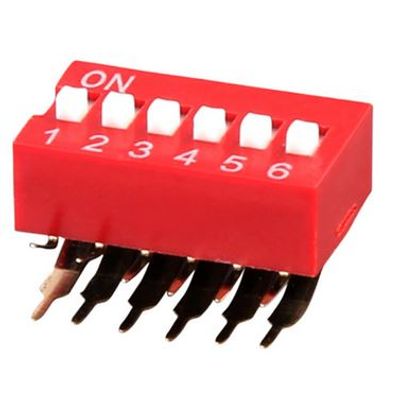

Max-Electronic - Model DA -Switche

SHARE

Series：DA. No.of Poles：01~12P. Color：R--Red；B--Blue；K--Black. Bottom Type：F--Flat Bottom（Standard）; G--Convex . Bottom（Custom）； Logo： ON(Standard)；xxx(Custom). Plating： (Standard) ；xxU`(Custom). Customer Request.

ELECTRICAL

  • Contact rating
  • switching    25mA, 24VDC .
  • non-switching    100mA
  • Contact resistance
  • initial    |50mQ Max.
  • after life test    100mQ Max. (300mQ Max. for Tin plated type)
  • Insulation resistance    1000MQ Min. at 100VDC
  • Dielectric strength    |500VDC Min. for 60 seconds
  • Capacitance between adjacent switches 5pF Max.

MECHANICAL AND ENVIRONMENTAL

  • Temperature rating
  • operating    -40C to + 85"C
  • Storage    -40°C to + 85C
  • Operation force    800g Max. (SPST only)
  • Mechanical life    2000 operations
  • Humidity    95% RH, 40°C for 96 Hrs.
  • Vibration    10Hz- -55Hz-10Hz for 6 Hrs.
  • Solderability    After flux 230+5C for 5+0.5 seconds, 95% coverage
  • Resistance to soldering heat    260+5C for 5+1 seconds
