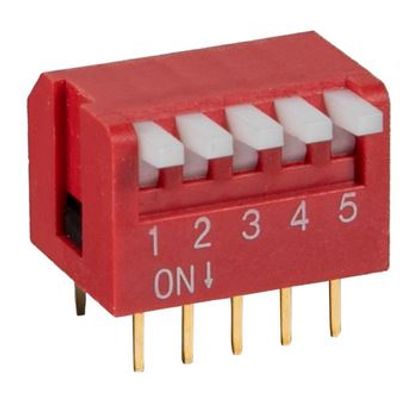

Model：DP. No.of Poles：01~12P. Color：R--Red；B--Blue；K--Black. Bottom Type：F--Flat Bottom（Standard）; G--Convex . Bottom（Custom）. Logo： ON(Standard)；xxx(Custom). Plating： (Standard) ；xxU`(Custom). Customer Request.

ELECTRICAL

Contact rating
switching 25mA, 24VDC
non-switching 100mA
Contact resistance(After life test) 100mQ Max. (300mQ Max. for Tin plated type)
Insulation resistance 1000MQ Min. at 100VDC
Dielectric strength 500VDC Min. for 60 seconds
Leakage Current 2mA Max.
Capacitance between adjacent switches 5pF Max.

MECHANICAL AND ENVIRONMENTAL

Temperature rating
operating -40C to +85C
storage -40°C to +85°C
Operation force 800g Max. (SPST only)
Mechanical life
1000 operations (EPH)
2000 operations (EPG/EPS)
Humidity 95% RH, 40C for 96 Hrs.
Vibration 10Hz-55Hz- 10Hz for 6 Hrs.
Solderability After flux 245+5C for 5+1 seconds
Resistance to soldering heat Solder bath:260+5C for 5+1 seconds
