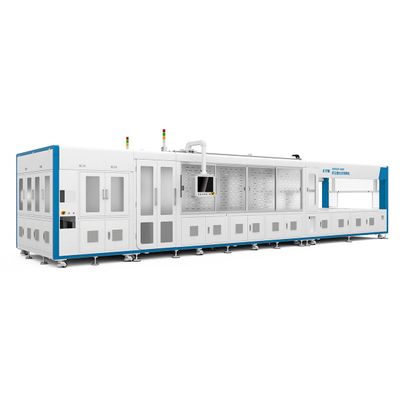

Horad - Model MS40K - MBB Cell Stringer Machine,

FromHorad
SHARE
The MBB Cell Stringer Machine, MS40K, is an advanced automatic device utilized for the serial connection of crystalline silicon solar cells. This machine supports a variety of solar cells ranging from 3BB to 12BB and dimensions including 156mm, 182mm, 210mm, and 230mm. Leveraging sophisticated automation technologies such as PLC, servo motors, four-axis industrial robots, and machine vision, the MS40K achieves efficient and precise cell string production. Further enhancing the solar panel manufacturing process, the machine includes a J-box potting system for precise glue application in PV junction boxes, and a robot string layup system equipped with cutting-edge machine vision and intelligent algorithms to detect panel specifications. For optimized glass handling, an automatic glass loading machine ensures rapid, accurate glass supply through innovative positioning and transporting mechanisms. Horad offers complete solar panel manufacturing lines, customizable to meet specific customer requirements, featuring comprehensive automation for improved stability and continuous operation.
Most popular related searches
stringer machine
solar panel manufacturer
silicon solar cell
solar cell
PV junction box
crystalline solar cell
crystalline silicon
solar panel
junction box
solar stringer
  • Cell String

Maximum length: 2,450mm
Cell gap: 1.8-6mm and ±0.2mm deviation; adjustment is needed when the gap is between -1mm and -0.5mm or 0.5mm and 1.5mm;
Straightness error: ±0.5mm

  • Throughput

Panel Size: 156mm-180mm
3,200 half cells/h (depending on the soldering compatibility)
2,200 full cells/h (depending on the soldering compatibility)

Panel size: 182-210mm
3,000 half cells/h (depending on the soldering compatibility)
2,000 full cells/h (depending on the soldering compatibility)




MBB cell stringer machine of MS40K is an automatic machine used for serial connection between crystalline silicon solar cells. The soldering machine can be applied to 3BB~12BB solar cells of 156mm, 182mm, 210mm and 230mm. The stringer machine adopts advanced automation technologies in terms of PLC, servo motor, four-axis industrial robot and machine vision to realize automatic production of cell strings.
