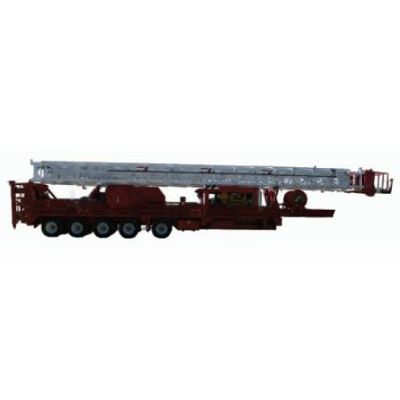

LCI - Model 1100/4212 -Mechanical Drawworks Loadcraft Rigs
Demountable, forged steel brake rims are 42` diameter x 12` wide, Brakes are cooled by circulating water, Drum shaft diameter is 7`, Single line pull is 51,800 lbs., Design with 2 x C15 power @ 540 HP, Two speed transmission shaft, High and low speed clutch assembly, Torque converter w/engine, Wichita 325 Auxiliary brake standard
Most popular related searches
hydraulic oil cooler
drive train power
hydropower
electric motor
drive train
fuel tank
hydropower supply
hydropower training
hydropower system
power training
Drawworks Options
- Parmac Model V80 hydrobrake
- LEBUS grooving on main drum - 1 1/8" diameter
- Crown block saver
Mast Model 122 x 440 Twin Box (per API 4F)
- Twin box leg fixed base design allows fast positioning of rig before mast is raised. Clear height is 122` below crown.
- Static hook load capacity: on 10 lines 440,000 lbs.
- Crossover crown with 36" fast-line sheave plus five 30" sheaves
- All sheaves mounted on Timken double-row bearings
- Racking capacity 12,000` of 4 1/2" drill pipe
- Two hydraulic raising rams and two hydraulic telescoping rams
- 1 1/8" wire line standard
Mast Options
- Mast lights, standpipes, hydraulic catheads Drive Train
- Power is by twin Cat C15 @ 540 HP w/torque converters
- Chain drive with oil spray lubrication
- Two-speed transmission shaft with high & low drum clutch shaft
- Shifting is done with air activated jaw clutch
- Main drive is 1 1/2 triple, two-speed is by 1 3/4 triple chain
Trailer
- Four axle heavy duty trailer is main frame
- Four axle heavy duty air ride suspension @ 25,000 lbs. capacity
- Attachments are ready for rear dolly and front jeep
- Trailer Options
- Tool boxes, extra fuel tanks, spare tires, operator platforms can be supplied as needed
Dollies
- Front Attachment: 2 axle jeep dolly
- Rear Attachment: 2 axle rear air ride dolly
Controls and Hydraulic System
- Hydraulic power is supplied from 65 HP electric motor APU
- The console panel for all leveling jacks, mast raising and extending cyl., engine, transmission, and main drum are located at one position for simple, quick rig-up. Operator`s console can be provided movable to 12`, 15`, or 18` 6".
- 50 gpm hydraulic pump for all rig hydraulics and tong operation
- Filters provided on pressure and return lines
Options
- 70 gpm hydraulic pump
- Hydraulic oil cooler for continuous use and hot climate applications
- Single or dual 8,000 lbs. or 12,000 lbs. catline winch for safe, efficient lifting
- Hydraulic catworks for precise control of make-up and break-out torques
- Cold weather packages for -40° operation
- Folding platforms off operator side of rig
- Spare line spool
- Mast lite package
- Rig ramps and crossbase supports
- Rig substructure - Hydraulic Telescopic type
- Rotary chain case drive
- Optional 5th trailer axle with lift
