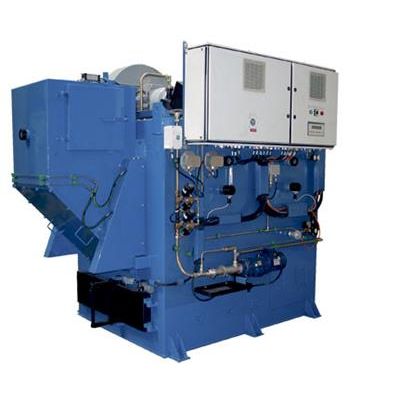

Atlas - Model 600 SL WS M - Medium Sized Incinerator for Burning Solid and Liquid Waste

• Combustion Capacity (kW) : 581
• Combustion Capacity (kcal/h) : 500.000
• Combustion Capacity Solid Waste (IMO waste specification) : 100 kg/h max. 400 kg/24 hours
• Combustion Capacity Liquid Waste (IMO standard is 20% water content) :
• 50 l/h at 0% water content
• 66 l/h at 20% water content
• 100 l/h at 50% water content

600 SL WS M

• W: 1831mm
• L: 2567mm
• H: 2473mm

600 SL B WS M

• W: 1831mm
• L: 2775mm
• H: 2473mm

• Induced draught air ejector for evacuation of flue gasses; hence Flue Gas Fan is not required
• Settling tank not necessary
• Burning oil sludge with up to 50% water without pilot fuel
• Three chambered design - clean burn
• Atlas designed sludge burner with no rotating parts
• Simultaneous burning of sludge oil and solid waste
