The MTU-v gas flare with partially concealed combustion is available with or without gas compressor and is delivered ready for use according to customer requirements and can be used immediately
Plug & Play!
Long service life guaranteed thanks to high-quality materials (stainless steel) and proven fittings.

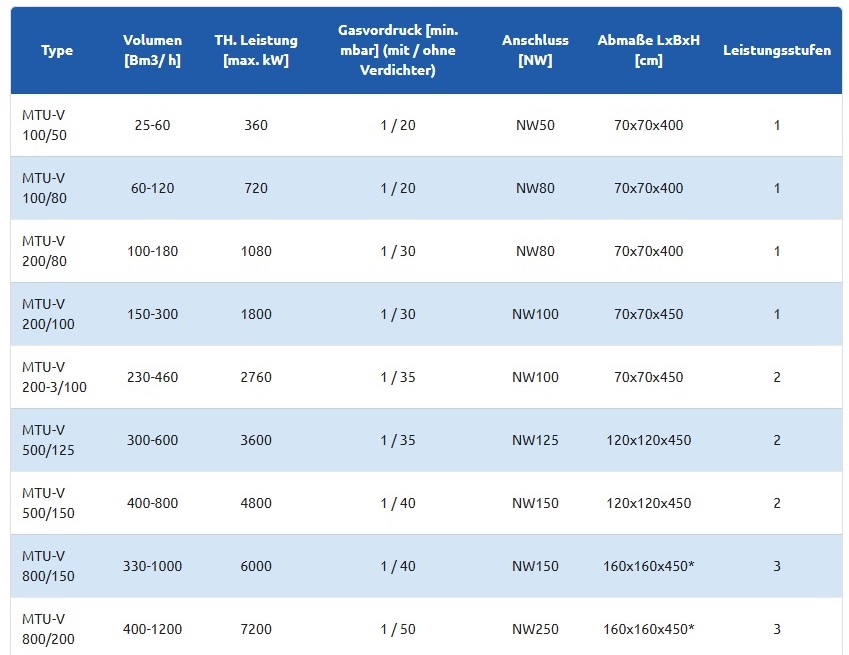

Depending on their size, the flares are equipped with one or more gas lines and have a gas flow rate of 25 – 1200 Bm3/h. If a higher gas throughput is required, we are happy to manufacture special flares or combined modules for you.
The flare burner starts as soon as the start command and the gas pressure to the flare are present.
Gas burner control unit controls the electrical ignition process fully automatically and monitors the flame during operation.
All control functions are housed in a weatherproof and ready-to-connect control cabinet
All components that come into contact with the medium are made of V4A steel, welded, blasted, and passivated.
Ignition systems: Direct ignition with high-voltage electrodes or pilot burners.
- Volume flow: 25 – 1200 Bm3/h
- Fuel: Biogas, landfill gas, special gases
- Calorific value: 35 – 100 % CH4
- Connection: DN 50 – DN 200
- Ignition: High voltage 10 kV or pilot burner
- Flame monitoring: UV cell
- partially concealed combustion > 800 °C
- Burner control according to EN746
- No guying required
- Low-maintenance operation
- Flame tube and base frame made of stainless steel
- Antifreeze package
- Stainless steel control cabinet
- Manual butterfly valve
- Ignition burner for start-up operation
- Torch length according to customer requirements
- Flame tube extension by 1.5m
