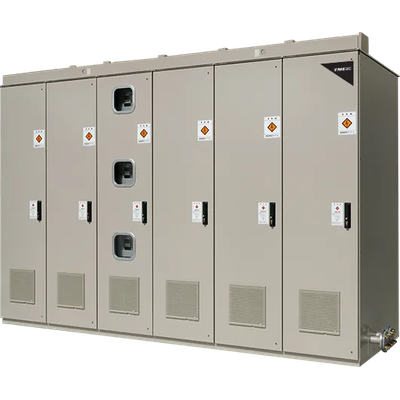

Tmeic - Model TMdrive-XL55 -Medium Voltage AC Drive
The TMdrive-XL55 is a medium voltage, AC fed drive designed for high-efficiency and power-friendly operation in a broad range of industrial applications. High reliability, low harmonic distortion, and high-power factor operation are designed into the drive. TMEIC’s water cooled design and compatibility of piping materials with de-ionized cooling system ensures that the drive has a MTBF of more than 20 years.
Most popular related searches
AC drive
power factor
phase-shifting transformer
power factor correction
harmonic filter
isolation transformer
energy efficiency
energy saving
rectifier diode
transformer isolation
Design Feature
- Conservative design using 4500 V IGBTs
- High energy efficiency approximately 98.6%
- Diode rectifier ensures power factor greater than 95% in the speed control range
- 36-pulse converter rectifier by using separated phase shifted transformer
- Multiple level drive output wave form to the motor (five levels for the 6.6 kV inverter)
- Synchronous transfer to line option with no interruption to motor current
- Remote input isolation transformer
- 6.6 kV direct drive voltage output level
Customer Benefit
- Highly reliable operation, expected 20-year drive MTBF
- Considerable energy savings
- Capacitors not required for power factor correction
- No harmonic filter required to provide lower harmonic distortion levels than IEEE-519-1992 guidelines
- No output transformer required, saving cost, mounting space, and energy
Suitable for standard motors due to motor friendly wave form
- Allows starting control of multiple motors with one drive
- No motor current or torque transients when the motor transitions to the AC line
- Less power loss in drive room
- Less total space required
- Simplifies design and installation
