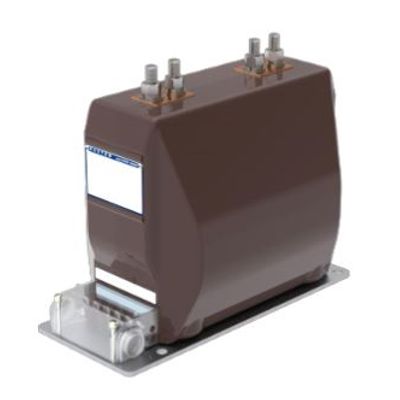

SADTEM - Model SW47 -Medium Voltage Indoor Current Transformer
FromSADTEM
Indoor dry type current transformer. Standards : IEC61869-2 | CSA C61869-2 | IEEE C57-13. Ambient temperature : up to-25/+40°C. CSA qualified: authorization LR 109295.
Most popular related searches
current transformer
dry-type transformer
medium voltage transformer
electrical insulation
current voltage transformer
- Insulation level : up to 27.5/50/125kV
- Frequency :50Hz | 60Hz
- Primary current (In) : up to 3000A
- Ratedshort-time thermal current (Ith) : up to 80kA 1s
- Rateddynamic current (Idyn) : up to 2.5 * Ith
- Number of cores : 1 to 3 Double ratio : by secondary tap or by primary coupling
- Accuracy class (IEC) : 0.1 | 0.2 | 0.2S | 0.5 | 0.5S | 1 | 3 | 5 | 5P | 10P | PX
- Accuracy class (CSA) : 0.15 | 0.15S | 0.3 | 0.6 | 1.2 | 2.5L ..| 10L..
- Accuracy class (IEEE) : 0.15 | 0.3 | 0.6 | 1.2 | C..
- Approximate weight : 31kg
- Cable outlet : PG16
- With sealable cover
- Short base without cover
- Without primary studs
