ZDDQ - Model ZD-GWJ-6/6-A - Medium ...

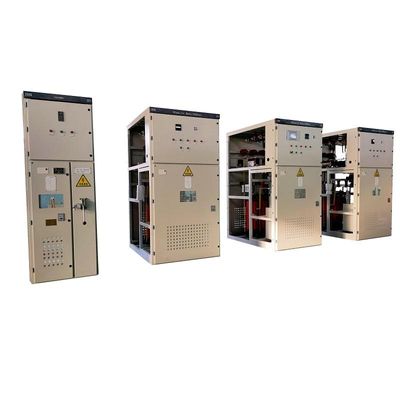

ZDDQ - Model ZD-GWJ-6/6-A -Medium Voltage Power Factor Panel

FromAnhui Zhongdian (ZDDQ) Electric Co., Ltd.

SHARE

Medium voltage power factor panels (APFC) are designed to enhance power quality by improving the power factor through the use of capacitors. These panels are essential for compensating reactive power, especially in systems where motors are directly operated without power electronics, which typically have low inductive power factors. The APFC system effectively balances reactive power in real-time, optimizing the power factor and stabilizing system voltage. This leads to reduced transmission losses, improved voltage quality, and operational cost savings. Rated for voltages between 6kV and 35kV, these panels utilize automatic switching capacitors and vacuum contactors to dynamically manage reactive power, ensuring the system operates efficiently. They are especially useful in industries such as steel rolling mills, chemical plants, cement plants, sugar plants, textiles, hospitals, hotels, and public grids, where the load may frequently fluctuate.

Most popular related searches

medium voltage power

power factor correction

power factor correction panel

automatic power factor correction

automatic power factor control panel

power optimization

power quality optimization

power electronic

Medium voltage power factor panel(APFC) aims to improve power factor and enhance power quality, utilising capacitors to offset usually inductive loads(motors). APFC system increase the efficiency of power supply, delivering immediate cost savings on electricity.

ZD-GWJ APFC panel with individual compensation: can detect the reactive power needed by the system in real time,compare it with the set value, carry on the automatic intelligent capacitor-switching on/off, make the reactive power of the system achieve dynamic balance, in order to improve the power factor of the system, stabilize the system voltage.

Name : Medium voltage power factor panel
Model : ZD-GWJ-/
Rated Voltage : 6Kv~35kv
Connection Type : Three-phase three wire
Rated Frequency : 50/60HZ
Step Capacity : 100,200,300,400~1200kVAr
Rated Capacity/panel : 2400kVAr
Power Factor : >0.9
Switch : Vacuum Contactors
Capacitance Tolerance : -5%, +10%
Reactance ratio : 6% 12% or customerized
Switching : Automatic switching Capacitors
Storage temperature : -40~85 °C
Working temperature : -25~55 °C
Humidity : ≤95%,non-condensate
Dimension (mm) : 800(1200)*800(1200)*2200(2400)
Installation : Indoor, free standing
Altitude : <1500m without de-rating
Certification : ISO9001,CCC, Type Test Report

Fast return on investment through lower power costs
Power factor correction reduces the reactive power in a system. Power consumption and power costs drop in proportion.
Effective use of installation : An improved power factor means that an electrical installation operates more economical (higher effective power for the same apparent power).
Improved voltage quality
Reduced voltage drops
Optimum cable design : Cable cross-sections can be reduced with improvement of power factor (less current). In existing installations for instance, extra or higher power can be transmitted.
Reduced transmission losses : The transmission and switching devices carry less current, i.e. only the effective power, meaning that the ohmic losses in the leads are reduced.
