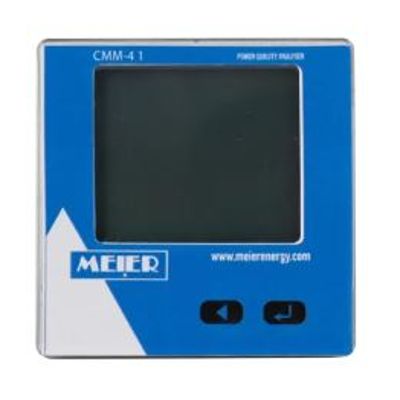

Meier Energy - Model CMM-41 -Multifunction Electrical Measurement Center
The CMM-41 Multifunction Electrical Measurement Center is a comprehensive solution designed for advanced energy monitoring and management. This compact unit, featuring dimensions of 72×72 mm, is suitable for integration into space-constrained environments such as cabinet front panels. It measures all electrical network parameters along with bidirectional energy, making it ideal for diverse applications ranging from industrial machinery and smart buildings to public utilities and mining operations. The device supports TN, TT, and IT networks and can operate both in single-phase and three-phase configurations. It features high accuracy with voltage and current measured to 0.2% and active energy to class 0.5s standards. Equipped with an RS485-Modbus communication port, the unit supports efficient data exchange and real-time updates every second. It ensures operational safety with isolation up to 2kV and is compliant with IEC61010-1 standards, providing reliable performance in harsh conditions with an IP54 protection rating.
The multifunction electrical measurement center CMM41 can measure all parameters of the electrical network in addition to bidirectional energy.
- Accuracy: 0.5s
- 4 Tariffs
- RS-485 Modbus Port
- 1 Impulse Output
- Dimensions 72x72 mm
- IP54 (front panel)
Standards:
- IEC 62052-11
- IEC 61557-12
- IEC 62053-21/22/23
- IEC 50470-1/3
- IEC 61010-1/2/31
The multifunction electrical measurement center CMM41 can measure all parameters of the electrical network in addition to bidirectional energy. It is equipped with an RS485-Modbus communication port and an energy measurement pulse output.
Its compact design (dimensions 72×72 mm) allows it to be mounted on the front panel of cabinets and enclosures where space is limited. As an advanced digital measuring device, it can be used for special applications (such as generators, machine tools, etc.) or in energy management applications requiring the installation of multiple devices on the front panel of the same cabinet.
Applications
- Machinery
- Smart Building
- Public Utilities
- Industrial Enterprise
- Quarries & Mines
Functions
- Network
- TN, TT, IT networks
- Single-phase or Three-phase
- BT et HT
- Communication
- RS485 Interface
- Modbus-RTU Protocol
- Accuracy
- Active Energy: 0.5s
- Voltage: 0.2%
- Current : 0.5%
Characteristics :
- Dimensions(LxHxP in mm) : 72x72x44,5
- Real-time measurement : U / I / P / Q / S / F / PF Maximeter (Demand)
- Energy measurement : Bi-directional energy
- Reactive energy on 4 quadrants
- Power Quality : Imbalance
- Communication : RS-485 Modbus port
- Inputs Outputs : 1 energy pulse output
