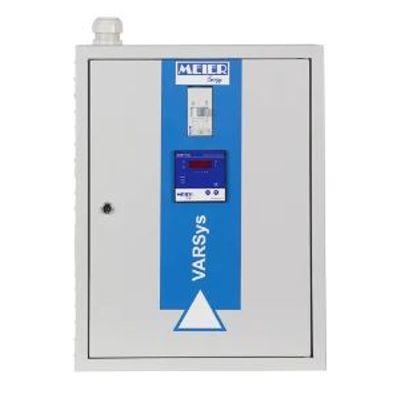

Meier Energy VARSYS - Model RANGE N -Up to 100kVAR Automatic Compensation Panels
The VARSYS RANGE N Automatic Compensation Panels are engineered to optimize power factor by dynamically adjusting the reactive power in electrical networks up to 100kVAR. These panels are designed for indoor installation within environments where ambient temperatures fluctuate between -5°C and 45°C, with an average daily maximum of +35°C. They are suitable for deployment at altitudes of up to 2000 meters. These panels ensure improved energy efficiency by minimizing losses associated with poor power factor, thus enhancing the overall performance and reliability of the electrical infrastructure. The panels are crucial for industrial and commercial applications where maintaining optimal energy usage is crucial. This solution also adheres to relevant industry standards and certifications, ensuring safe operation within specified limits and improving the quality of the electricity supply.
- Installation: Indoor
- Ambient Temperature: -5°C to 45°C
- Average Daily Temperature: Maximum +35°C
- Humidity: Up to 95%
- Maximum Altitude: 2000m
- Electrical Specifications
- Nominal voltage : 415 V – 50 Hz
- Capacity Tolerance : -5%, +5%
- Connection Type : Three-phase
- Power Loss : < 2.5 W/kVAr
- Maximum Allowable Current
- (with thermal protection included) : 1.43 In
- Maximum Allowable Voltage : 1.1 x Un, 8h every 24h
- Overload Protection : CHL Protection Alarm (Capacitor Harmonic Load)
- Isolation Voltage : 690 V
- Shock Withstand Voltage : 8 kV
- Box
- Degree of protection : IP42
- Color : RAL 7035
- Degree of Mechanical Resistance : IK10
- Varmetric Relay
- Genius® : Genius® B106 (other options available)
- Head Protection
- With Main Switch : Rotary Handle Switch-Disconnector
- The compensation bank must be protected upstream by a circuit breaker
- With Circuit Breaker : Modular circuit breaker from 05 to 25 kVAR
- Molded case circuit breaker starting from 37.5kVAR
- Steps
- Type of Capacitors : VARCap® 415 V – 50 Hz
- Maximum Overload: Up to 2.0 In
- Maximum Inrush Current: ≤500 In
- Operational Ambient Temperature: -40°C – +60°C
- Overvoltage Protection for all 3 Phases
- Discharge Resistance 50 V – 1 min
- Contactors : KMC Range, dedicated to capacitor switching
- Step protection : Protection provided by the head circuit breaker
- Temperature Control
- Temperature Control : By Genius® controller
- Communication
- ModBus : RS485 (optional)
- Installation
- Auxiliary Power Supply : 230 V AC – 50Hz
- CT (Not included) : >5 VA – secondary1 A or 5 A
- To be installed upstream of the load and the compensation bank
- Emergency Group Contact : Not available
- Alarm Contact : Available for remote alarm reporting
- Dimensions
- Power up to xxkVAR : Panel C1 – HxLxP : 470 X 392 X 205
- Power up to xxkVAR : Panel C2 – HxLxP : 600 X 462 X 205
- Power up to xxkVAR : Panel C3 – HxLxP : 600 X 650 X 260
