Meper - Model MP55D -Jerry Can Full-Automatic Plastic Pe Drum Jar Manufacturing Extrusion Blow Molding Machine
Meper MP55D extrusion blow molding machine adopts parallel carriage moving, with automatic lubrication system. The movements is stable and easy operate, two layer die head is optional. This series machine is widely used in food packing, pharmacy and cosmetic area.

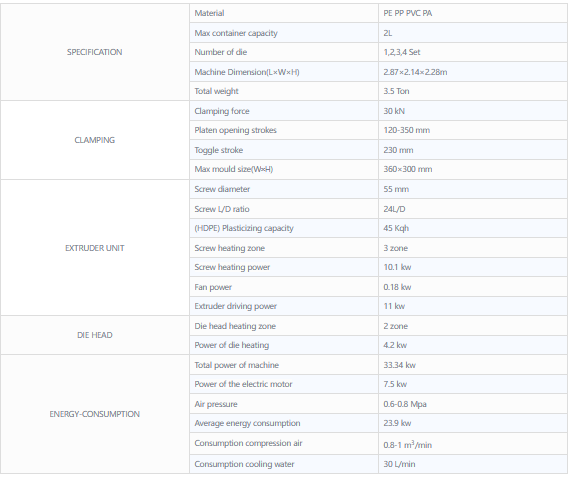

- Brand: MEPER
- Model: MP55D
- Material: PP PE PVC PA......
- MAX container capacity: 2L
- Number of die: 1,2,3,4 Set
- Machine Dimension: 2.87*2.14*2.28 m
- Total weight: 3.5 Ton
Introduction
MP55D is specifically designed for making bottles from 10ml up to maximum 1L. It is hydraulic driven with accrate eletrical control system. MP55D has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP55D is updated to be one of the most reliable and popular model in the world.
Extrusion Die Head: Highly Experienced Multi-cavity and Multi-layer Technology
Adopting with latest die head design, MEPER focuses on providing high quality and high precision self-manufactured extrusion die heads for customers.
Control System: Highly Optimized User-friendly Control Technology
All Meper Machines is Equipped in Standard with Easy Operational Techmation Control System or Optional with B&r Control System. Moog Parison Control is Also Optional Based on Different Requirements.
Clamping System: Highly Developed Tie Barless Design
MP-D Tie-bar series employs direct-acting clamping system transferring the forces directly to the middle of the back platen and converting the same force to the front by tie bars and alignment rod. This tie-bar design offers quick mould change and convenient scrap collection.
Energy Saving: High Standard of Energy Saving System
MP55D is equipped with high standard of energy saving driving systems. All extrusion and hyraulic motors are in IE3/4 energy level. Also, servo energy saving feature can be easily applied.
