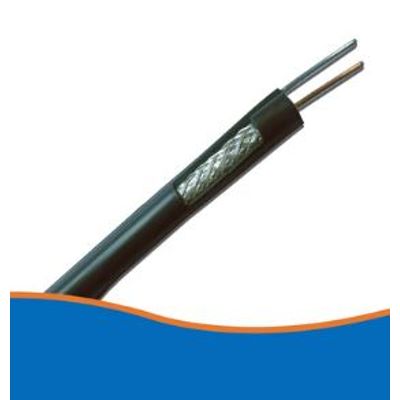

Yatong - Model RG11/U -Messenged Cables

Construction
Physical Specifications Material Specifications

• Dielectric 0.280in(7.11mm) FPE
• 1`st Shield AP bonded AL foil
• 2`st Shield 60%-95% coverage BC/TC/AL
• 3`st Shield
• 4`st Shield
• jacket 0.395in(10.03mm) PVC
• Messenger 0.072in(1.83mm) Steel

Mechanical Properties

• Cable Temperature Rating 80°C
• Electrical Properties
• Impedance 75±3Ω
• Capacitance 16.2pF/ft(53.1 pF/m)
• SRL 5-300MHz≥20dB
• 300-1000MHz≥18dB
