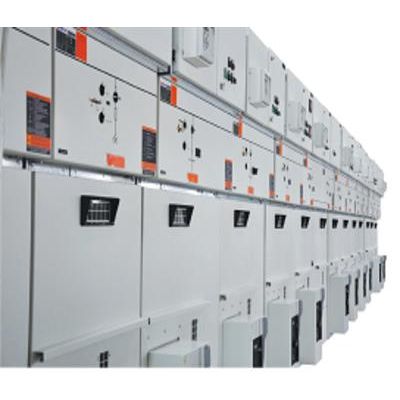

Elko - Model MME Type Cells - Metal Enclosed Modular Switchgear

• Modular design makes it easy to install and add on both sides.
• The possibility of faulty opening / closing by means of mechanical interlocks is eliminated.
• The MME type cubicles are suitable for equipping remote monitoring and control equipment.
• Reliable Switching in Sf6 Gas
• Ease of Transportation and Storage
• Various Feeder Combinations According to Customer Requests

• Medium Voltage Distribution Systems (TEDAŞ)
• Power Plants (GES, HEPP, RES, GPP)
• Infrastructure and Construction Sector
• Industrial facilities

Description of LSC 2A-PI:
LSC: Loss Of Service Continuity
2 A: When interfering with the accessible part of the cell in normal operation (Example: Cable connection section) , neighboring cells connected to the main bus may be energized. That is, service continuity is not restricted.
PI: P: There are more than one “Sections
I I: At least one of the Sections is separated from the other by an insulating material.

• Suitable for indoor use.
• There are different types of OG cells according to their functional properties.
• (Example: Input / Output Cell with Breaker, Load Disconnector Input / Output Cell, etc.)
• SF6 gas or vacuum circuit breakers are used in the circuit breaker cells according to the request of the BUYER.
• Type tests were carried out in accordance with the relevant TSE IEC standards.
• ELKO Modular Cubicles are manufactured according to IEC 62271-200, IEC 62271-100, IEC 62271-102 standards.
• MME type medium voltage switching and control devices (MV cubicles) have the relevant TSE documents.
