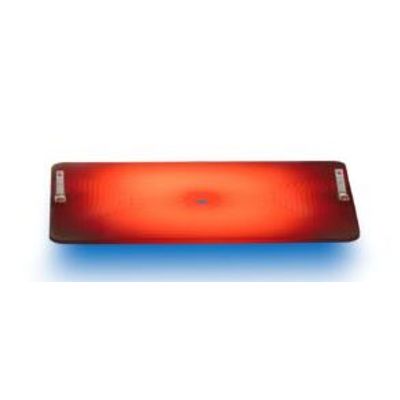

Basic structure of a metal flat heater
Metal flat heaters are manufactured using the so-called thick-film process. Multiple layers with various functions are applied to a metallic substrate using screen printing.
In addition to standardized solutions, our stainless steel substrates can also be custom-made and printed according to individual customer specifications. The conductive path is designed by our highly motivated team based on the desired performance data and tailored to the heater’s geometry. Custom solutions such as the precise integration of sensors are faithfully implemented from single pieces to large-scale production.
Cleanroom manufacturing, from substrate preparation to soldering the contacts, ensures the highest quality standards. The result is a durable and light-weight resistance heater with high energy efficiency. Our commitment to quality is completed by a functional test.
- Substrat : Stainless steel 1.4016
- Substrate Thickness : 1-1.5 mm, higher layer thickness possible
- Dimensions : Up to 150 x 150 mm
- Power : 25-800 Watts (free in still air)
- Operating voltage : 24-230 V
- Temperature range : 450°C – 500°C, continuous; 550°C, short-term
- Continuous operation lifespan : > 8000 hours (20°C; 50% relative humidity; clean room)
- Resistance-temperature behavior : Almost linear PTC behavior (positive temperature coefficient)*
- Temperature control : Voltage
- Contacting methods : Soldering pads, tabs, wire and other methods possible
- Contacting material : Silver
- Mounting Fastening : Screws, laser welding, soldering
