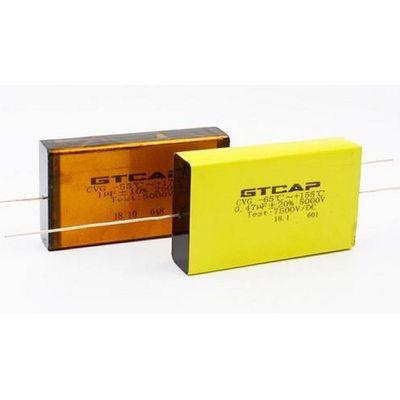

GTCAP - Model CVG - Mica Paper Capacitor with High Voltage and High Temperature

• BRAND: GTCAP
• SHIPPING PORT: Shanghai
• MODEL: CVG
• VALUE: 0.022μF~3.3μF
• VOTAGE: 0.45KV~30KV
• FEATURE: high voltage, high temperature, high frequency
• GRADE: Military/Industrial
• MOQ: 10pcs
• PAYMENT: T/T,L/C, Western Union,Paypal,Alipay
• COLOR: Yellow
• LEAD TIME: 15~30days
• PRODUCT ORIGIN: China

Feature

• Using the best mica paper 511 as material, dipping high temperature epoxy resin.
• As the high insulated resistance, low coefficient, good high frequency performance.
• Very low dissipation factor
• Very stable at high temperature, small capacitance tolerance.
• After storage 15years, capacitance change not over ±1%.

Application

Our GTCVG series mica pcapacitors are suitable to high frequency,high voltage,high temperature,big current circuit. Like high frequency feedback circuit,high frequency resonance circuit and pulse circuit etc.

Widely use in satellite,aerospace,ship,medical equipment,oil down-hole equipment,welding machine,metallurgy equipment etc.

General Characteristics

• Temperature Range: -55℃～+200℃
• Capacitance Tolerance: ±3%,±5%,±10%
• Relative Humidity: at +40℃ can be 95~98%
• Atmospheric pressure: 4x104Pa
• Vibration: frequency 20~200Hz, acceleration: 2.7~4.5g
• Working voltage: 0.45KV~30KV
• DC test voltage: After keep 1 hour at +150℃,loading 1.5times working voltage 1 minute,no breakdown and flashover.
• Insulation resistance(R): normal climate
•   Capacitance C ≥ 0.1μF R≥1000MΩ
•   Capacitance C＜ 0.1μF R＞5000MΩ
