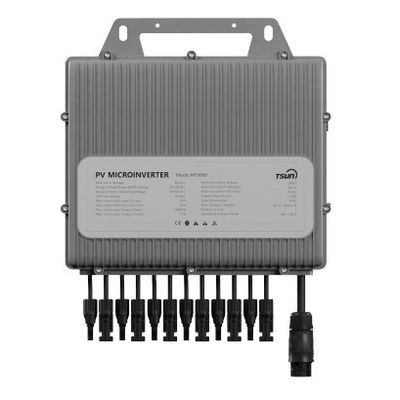

TSUN TITAN - Model TSOL-MP3000 -Micro Inverter
For more demanding environments, TSUN TSOL-MP3000 support up to six high power panels at once, maximizing the power your installation can generate. The inverter is mounted directly near the solar module in the shade and is only responsible for the connected modules. This microinverter is therefore perfect for small systems and module areas with partial shading.
- Compatible with 182/210 solar module
- Individual optimization.
- Max efficiency up to 97.1%.
- Multi-channel MPPT for complex installation environments.
- Max DC voltage 60V.
- Integrated LoM protection function.
- Die casting design and glue filling technology.
- Plug and play installation and easy monitoring setting.
Input Data (DC)
Model: TSOL-MP3000
Quantity of Input: 6 Inputs 6 Panels
Recommended Module Power (W): 480 ~ 700+
Start up Voltage per Input@Rated condition (V): 22
Mppt Voltage Range per Input (V): 18~60
Max. Input Voltage per Input (V): 60
Max. Short-circuit Current per Input(A): 20
Max. Input Current per Input (A): 18.5
Quantity of MPPT: 6
Output Data (AC)
Model: TSOL-MP3000
Max. Output Power (VA): 3000
Nominal Continous Output Power (W): 3000
Nominal Output Current (A): 13.6
Max. Output Current (A): 14
Nominal Output Voltage/Range (V)*: 220/230/240(175~270), L/N/PE
Nominal Frequency (Hz)*: 50/60
Power Factor: >0.99 default, 0.8 leading … 0.8 lagging
Output Current Harmonic Distortion: <3%
Efficiency
Model: TSOL-MP3000
Peak Inverter Efficiency: 97.1%
CEC Weighted Efficiency: 96.6%
Nominal Mppt Efficiency: 99.9%
Protection
Model: TSOL-MP3000
Anti-Islanding protection: Integrated
DC reverse polarity protection: Integrated
Insulation monitoring: Integrated
AC surge protection: TYPE II
Residual current monitoring: Integrated
AC overcurrent protection: Integrated
AC short-circuit protection: Integrated
AC overvoltage protection: Integrated
Over-heat protection: Integrated
Mechanical Data
Model: TSOL-MP3000
Dimensions (W×H×D mm): 354 * 294 * 60
Weight [kg]: 6.8
General Data
Model: TSOL-MP3000
Night Time Power Consumption: <1W
Display: LED indicators; TSUN APP+WEB
Communication: Built-in WiFi module; 4G module (Optional)
Type of Isolation: Transformerless
Type of Enclosure: IP67
Cooling: Natural convection
Operating Ambient Temperature Range: -25 ~ +65 °C (derating of over 50°C Ambient Temperature)
Relative Humidity: 100%
Max. Operating Altitude Without Derating [m]: 2000
