Norma - Model MTN/5000 - Microcomputer Controlled Multichannel Condition Monitoring System

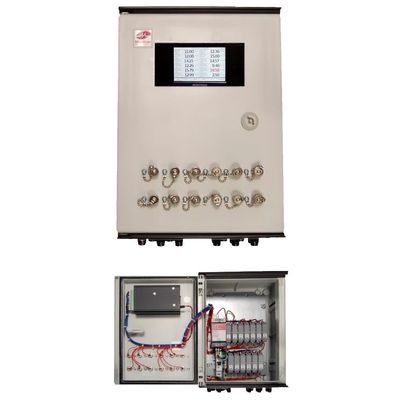

This advanced microcomputer controlled multichannel condition monitoring system has extreme versatility allowing it to be dedicated to a wide range of condition monitoring applications. Normally located within a weatherproof enclosure it constantly shows each sensor status through a colour display and initiates alarms when necessary. Full integration with other control systems and types of sensors, in addition to vibration, are standard features.
3.5 inch TFT touchscreen with an easy-to-navigate menu that enables users to set data sampling periods, ranges and accuracy levels plus vibration threshold (alarm) levels on a channel-by channel basis or across all channels. In addition, the system has 12 digital I/O channels, enabling the MTN/5000 to be integrated with other systems.
- Ethernet connectivity: TCP/IP; Modbus
- Parameter: Value
- Analogue channels: 12
- Sampling resolution: 12 bit
- Sampling speed: Up to 1,000,000 samples/sec
- Input range: Dependent on sensor
- Screen: 3.5” (89mm) TFT Touchscreen 480 x 320 x 24 bit colour
- Sample buffer: 12 x 100 samples
- Input voltage: 24 VDC
- Alarms: 12 (user configured 1 per channel)
- Dimensions (enclosure only) 350 x 250 x 200 mm
