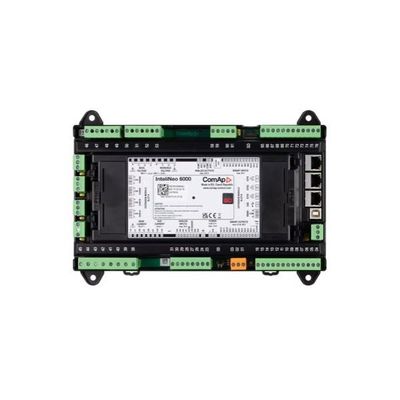

InteliNeo - Model 6000 - Microgrid Controllers

• Single controller for renewables power sources and battery energy storage system
• Native microgrid applications for on & off-grid systems with renewable energy and storage
• Onboard Modbus Master for RTU/TCP support of up to 32 devices with extended device support via InteliGateway 300
• Support of up to 64 genset/mains controllers in CAN FD mode (250m)
• Hot-Swap controller for system resilience and reduced downtime in case of fault (in primary controller)*
• Controller data encryption to protect prevent unauthorised views of controller configuration

* Features available with a software key.

InteliNeo 6000 offers:

• Configurable microgrid applications MPTM and MINT for on and off-grid systems
• One controller for renewables and storage devices
• Advanced battery state machine to provide precharge condition for BESS to transition from grid-following to grid-forming
• Onboard Modbus Client for RTU/TCP communications to inverters and storage systems
• Support for black start of grid-forming battery storage systems
• New CAN FD inter-controller communication standard enabling cooperation with up to 64 additional gen-sets/mains/tie controllers
• Import/Export to utility mains by load sharing or curtailment of renewables and storage
• Compatible load/VAr sharing and power management with other ComAp solutions
• Balance mode, optimising the use of energy by prioritising renewables before gensets/mains
• Peak shaving for limiting the import from the mains (e.g. due to higher prices)
• Load shedding ensuring the most important loads are running even when there is a lack of power
• Hot-swap redundancy enabling a redundant unit to take over in case the primary controller fails, helping to minimise solution downtime*
• CAN bus redundancy ensuring that a redundant CAN line be created and take over in case of CAN failure*
• Built-in PLC interpreter via ComAp`s free PLC Editor with new logic blocks for microgrid applications
• Keeping your business and data as safe as possible with controller designed to the ISA 62443 level 2 - level 3 security requirements
• Built-in CAN bus logger and event-based history for easy and fast troubleshooting
• Controller data encryption and user-defined protections to protect prevent unauthorised views of PLC Editor and setpoints on top of default protection
• AirGate 2.0 for easy connection to your equipment remotely without worrying about your asset’s IP address
• Remote control and monitoring of your microgrid with WebSupervisor, our cloud-based fleet management tool
• A wide range of plug & play displays with automatically generated content that can be easily edited in our free Screen Editor

Extended features applicable to this controller with a software key:

• CAN2bus redundancy
• Modbus client
• Controller Hot Swap
• PLC Package
