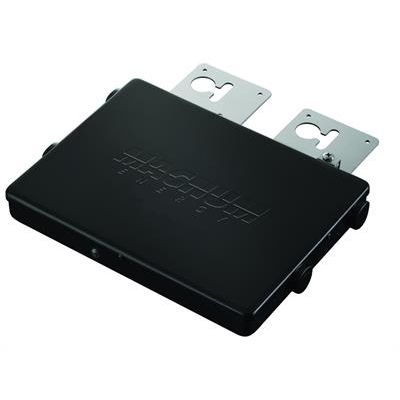

MicroGT - Model 500 -Inverter

• Output Power 500W
• Warranty 25 years
• Output Voltage 120 / 240 VAC
• Output Peak 2amps
• Output Waveform Pure Sine
• Output Frequency 60 Hz
• Input Voltage 24, 48
• Operating Temp -40°F to +149°F (-40°C to +65°C)
• Efficiency 95.5%
• Weight 5.5 lbs (2.5kg)
• Dimensions 8.75” x 6.5” x 1.1” (221mm x 167mm x 29mm)
• UL Certified Yes
• Phase Single
• Input Battery Voltage Range MPPT input voltage range 22-45VDC

• Supports two modules per inverter, reducing installation labor time.
• Handles up to 310W modules with negligible clipping, delivering 250W AC per module.
• Individual MPPT for each module.
• Module-level electronics mitigates shading issues and increases system output and reliability.
• Using seven MicroGT 500 inverters, string up to 14 solar modules with a 20A breaker.
• Ready for install in your area: UL1741 and NEC690.12 compliant.
• Storage-ready: Optimized to regulate AC coupled Magnum battery-based inverters, increasing battery life.

The grid-tie MicroGT Inverter is ideal for use with battery backup systems. Optimized to communicate with a Magnum battery-based system, particularly the MS-PAE Series Inverter/Charger, the MicroGT allows the addition of battery storage to a more traditional microinverter installation.
