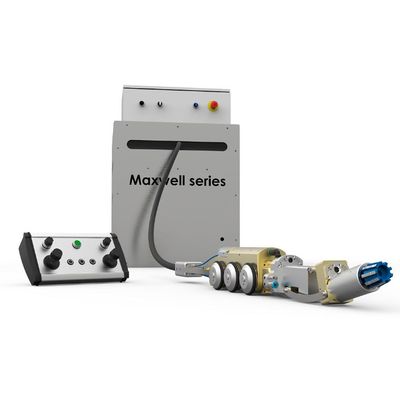

Maxwell - Model 400 -Mid-Range Versatile Electric Cutter
FromSewertronics
This mid-range versatile electric cutter works in pipes ranging from DN140 to DN400. Its powerful electric motor supports CIPP operations and general sewer maintenance. Available with manual or motorized cable reel, it can be installed in a truck or left mobile for greater flexibility.
Most popular related searches
Cuttin Robot
- Working diameters DN150 to DN400
- Dimensions 80 x 13 x 12,5 cm
- Extension of the milling head (mm) No, only bigger wheels are available
- Pressure rollers No roller, but flap
- Type of movements Forward, backwards, arm rotation -172 to 172 degrees, arm tilt fo 0-84 degrees.
- Robot speed Up to 11 m/min on smallest wheels. Up to 18 m/min on 125 mm wheels
- Voltage 48V
- Output power (cutting head) 1,5 kW
- Rotation speed (cutting head) 10,000 rpm
- Integrated Camera Yes, 720 x 576, FOV 80 degrees
- Materials aluminum, stainless steel 304, brass
- Weight 25 kg
- Accessories 90 mm standard. Optional 125 mm and 175 mm
Cable reel
- Type of synchronization and motorization manual and automatic motorization
- Dimensions 103 x 70 x 100 cm
- Cable Ø 20 mm, thermoplastic high pressure hose with 2 polyester braids, breaking pressure 500 bar
- Maximum cable length 100 m
- Weight about 200 kg
Control Unit
- Monitor LCD 15"
- Type Box mounted, ABS rating, IP67
- Functions Rotation of the head, tilt, robot movement, switching on and off cutting head, LED dimming, regulation of cable reel speed
- Dimensions 586 x 436 x 216 mm
- Weight 13 kg
