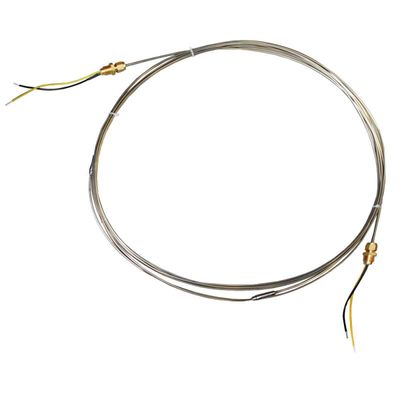

Isoheat - Model MIL-HC-Alloy -Mineral-Insulated Heating Cable
Mineral-insulated heating cable up to 750°C. Pre-assembled, mineral-insulated heating cable with metal sheath made of Alloy 825 (2.4858).
Most popular related searches
- High-performance heating cable for transmitting a high heat output
- Laser welded connection technology
- The cold end can be inserted into our plenum boxes and connected using the pre-assembled M 20 x 1,5 screw connection
- Length, voltage and power individually customizable
- Also available in EX version according to ATEX directives
- Nominal voltage: Up to 500 V AC
- Rated power: Up to max. 250 W/m
- Dimensions: Ø 3,2 – 6,5 mm
- Protection class: I
- Protection type: IP 67
- Inner conductor (resistance wire): NiCr 8020
- Max. temperature: 750°C
- Cold ends: 2 x 0,5 m standard (other lengths possible)
- Screw connection: M 20 x 1,5
