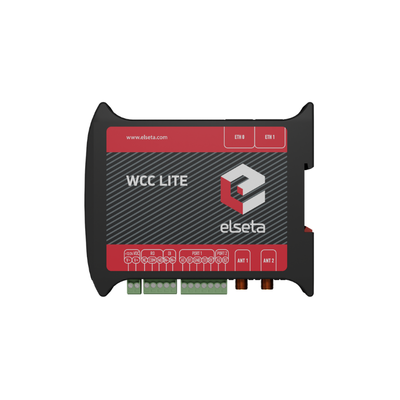

Elseta - Model WCC Lite - Mini RTU and Gateway Device

FromElseta
SHARE
The WCC Lite is a self-contained device designed to perform as a protocol converter, mini remote terminal unit (RTU) without I/Os, and data logger. It is optimized for retrofit projects due to its compact size, allowing it to fit into existing cabinets while supporting a wide range of protocols for comprehensive conversions. The device features additional digital inputs (DI) and relay outputs to notify SCADA systems about power outages or indicate errors on cabinet doors, possibly functioning as a simple command transmitter. The integrated modem enables a transition from traditional cabling or radio setups to mobile connectivity. With capabilities such as routing, firewall, and VPN in addition to high-bandwidth Ethernet and 4G connections, WCC Lite supports video surveillance traffic, remote access to IEDs for configuration, and COMTRADE file management. It's suitable for secondary substations, renewable power plants, and any application that requires data collection and transmission from field equipment to SCADA, DMS, or cloud-based platforms like CloudIndustries.eu web SCADA.
Most popular related searches
renewable power
power outage
solar wind
power grid
photovoltaic inverter
energy storage
renewable energy
wind energy storage
wind solar energy
solar energy storage

WCC Lite is a single-box device not require any vendor-specific power supply or other components and can work as a standalone device for applications such as protocol converting, mini RTU without I/O’s, datalogger, etc. WCC Lite is ideal for retrofit projects – as its small footprint allows to fit it into any existing cabinet, while its wide variety of supported protocols and possibility for converting them to each other gives a perfect fit. Additional DI and relay output allow to send information to the SCADA system about power outages and indicate errors on cabinet doors or to use as a simple single command.

Due to the integrated modem feature, WCC Lite with the smallest in the market footprint allows to switch from existing cabling or radio infrastructure to mobile connectivity. WCC Lite has an ideal set of features to become a networking router for small sites including routing, firewall, and VPN features. The high bandwidth of Ethernet and 4G allows to integrate of video surveillance traffic or IED’s remote access for configuration, COMTRADE files, and other needs.

WCC Lite can be used as a small RTU in secondary substations, renewable power plants, and other places with the need to collect and deliver data from various field equipment to SCADA, DMS, or CloudIndustries.eu web SCADA platform. To read more about mini RTU with I/O’s click here.

  • Power Grid
  • Renewable energy projects (solar, wind, hydro)
  • Energy storage applications
  • Factory resources supervision
  • Energy sub-metering applications
  • DNP3 master/slave (Serial / TCP)
  • IEC 61850 (client/server)
  • Modbus master/slave (RTU / ASCII / TCP)
  • M-Bus master (Serial / TCP)
  • IEC 60870-5- 101 master/slave
  • IEC 60870-5- 103 master
  • IEC 60870-5- 104 master/slave (KEMA certified)
  • IEC 62056-21 master
  • IEC 62056-31 master
  • Transparent tunnel from TCP to Serial

Compatible with multiple PV inverters (Aurora, ABB, Danfoss ComLynx, Diehl, Delta, Ginlong, Huawai, Kaco, PowerOne, SMA, Sungrow, Solar Edge, Solis, Solax, and many others).
