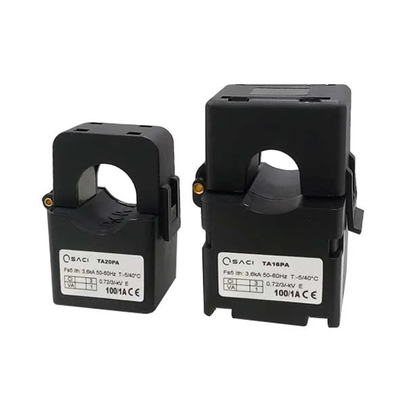

SACI - Model TA_PA -Mini Split Core Transformers
Mini split core TA_PA transformer for measuring instrumentation. It is a through primary transformer for cable. It stands out for offering primary current ratios ranging from 20A to 200A, with secondary outputs of x/5A and x/1A.
Most popular related searches
Model/ Bus-bar / Cable
- TA16PA / — / Ø16
- TA20PA / — / Ø20
Security features
- Continuous overload: 1.2 x In
- Rated short-circuit thermal I.: 60 x In or Ith limited by cable or primary busbar dimensions
- Rated dynamic I.: 2.5 x Ith
- Operating voltage (max.): 720 V AC
- Test voltage: 3 kV, 1 min.
- Frequency: 50 – 60 Hz
Further information
- Operating temperature: -5ºC to +40ºC
- Storage temperature: -25ºC to +75ºC
- Accuracy: 1 – 3
- Nominal secondary I.: x/5A or x/1A
- Cable length: 1m
- EN 61869-1
- EN 61869-2
- EN 61000-6-3
- EN/IEC 6100-6-1
