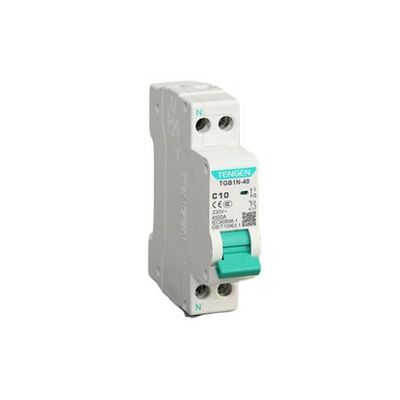

Tengen - Model TGB1N-40 -Miniature Circuit Breaker
TGB1N-40 Miniature Circuit Breaker is mainly used in the AC 50/60Hz power line facilities and electrical equipment in households and similar places with rated voltage 230V, rated current up to 40A for overload and short-circuit protection, suitable for infrequent breaking and making operation, especially suitable for industrial and commercial lighting distribution systems.
Most popular related searches
miniature circuit breaker
circuit breaker
electrical equipment
power line
lighting system
power plant equipment
- Product name : TGB1N-40
- Standards : IEC60898-1
- Certificate : CE
- Electrical characteristics
- Number of poles : 1P+N (N pole can be opened and closed)
- Rated frequency (Hz) : 50/60
- Frame rated current (A) Inm : 40
- Rated current (A) Ie : 6? 10? 16? 20? 25? 32? 40
- Rated voltage (V) Ue : AC230
- Rated insulation voltage (V) Ui : 500
- Rated impulse withstand voltage (kV) Uimp : 4
- Rated short-circuit breaking capacity (kA) Ics : 4.5
- Rated short-circuit breaking capacity (kA) Icn : 4.5
- Instantaneous trip characteristics : C(5In ~ 10In) D(10In ~ 14In)
- Trip form : Thermal magnetic trip
- Pollution level : 2
