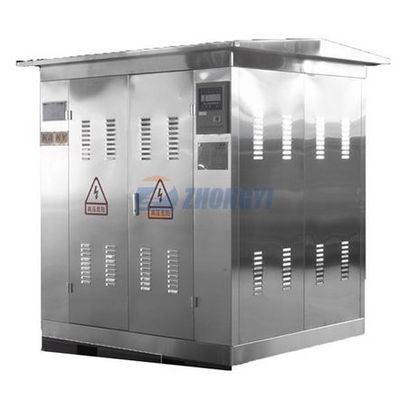

Zhongyi - Model KSG - Mining Flameproof Dry Type Power Distribution Transformer
KSG Mining flameproof dry-type cast resin transformers for mines are mainly used in metal and non-metallic mines without explosion hazard, providing power for various equipment, roads and railway tunnels in mines and underground mines.
KSG Dry-type cast resin transformers for mines are mainly used in metal and non-metallic mines without explosion hazard, providing power for various equipment, roads and railway tunnels in mines and underground mines. The mines mentioned here include iron ore, copper ore, gold ore, aluminum ore and other metal and non-metal mines. The model of the general-purpose dry-type transformer for mining is KSG.

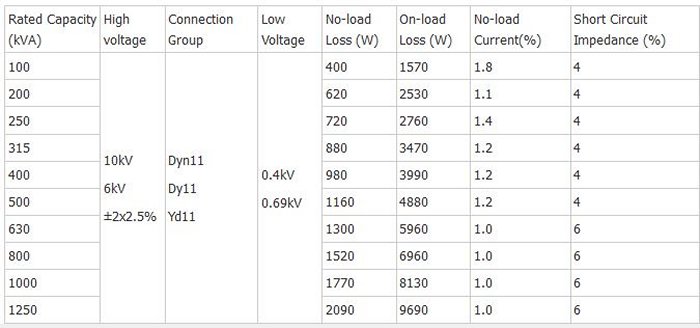

The total transformer capacity of KSG mine dry-type epoxy resin transformer is 100-1250kva, the input voltage is 10kV or 6kV, and the output voltage is 690V or 400V.
KSG mine dry-type transformer has the advantages of safety, reliability, energy saving, fire prevention, explosion-proof, no harmful gas, no environmental pollution, simple maintenance and so on.
The product has excellent performance indicators and maintains good electrical and mechanical properties throughout its service life.
High requirements for fire protection and large load changes, suitable for environments with high heat resistance levels.
The iron core of KSG mine dry-type transformer is made of high-quality cold-rolled silicon steel plate, with small joints, low loss and low noise.
The coil adopts winding technology, and heat-resistant insulating material is used between the layers and the windings.
The coil is immersed in vacuum with imported paint, and the impregnated paint penetrates into the deep layer of the coil. 160-170 ? is drying hardening, high mechanical strength. The fuselage is vacuum dried by the pressure conversion method, and the surface of the fuselage is covered with a moisture-proof hello coating with excellent insulation.
