CEC - Model CX-PSS -MIR Steel Belt Dryer (SBD)

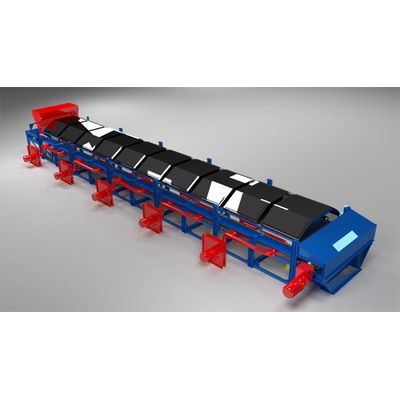

CX-PSS Steel Belt Dryer (SBD™) is a simple dryer, using woven endless steel belt. It is used to dry and dewater minerals without the creation of dust, and at the maximum possible efficiency. The CX-PSS SBD has been successfully installed as an alternative to conventional rotary kiln dryers (typically using gas) on the following products:

• Iron ore and coal fines
• Kimberlite (diamond) concentrates
• Precious and base metal concentrates
• Phosphate concentrates
• Molybdenum concentrates

A typical steel belt has a nominal aperture of 200 microns and is joined using a clipper joint (pin seam). The belt circulates in linear motion around a set of pulleys using positive bending only. The belt is driven by a drive pulley, which drives the belt, aligned by the tracking pulley, and tensioned by the tail pulley. The vacuum boxes are situated inside the steel belt underneath the horizontal path of the steel belt.

• The steel belt dryer can accept feed materials as high as 30% w/w moisture, and can efficiently dry material to as low as 1% w/w moisture.
• The feed hopper accepts and spreads the material across the belt evenly to the specified bed height. Screw extrusion can also be used to maximize energy absorption and drying efficiency.
• Steel belts are unaffected by variances in temperatures up to 750ºC and can easily accept high temperatures unlike normal plastic or material belts would stretch, or deform.
• CX-PSS steel belts are custom fabricated for each project, and are selected for appropriate aperture size, depending on the relative coarseness or fineness of the product.

When a vacuum is placed at a surface of a substrate, causing air to be drawn through the substrate, the moisture removal efficiency is further enhanced due to:

• The total surface area of the substrate, exposed to the air being is greatly increased by including inner surfaces and both top and bottom surfaces;
• The reduced pressure at the substrate surface where the vacuum is applied – this causes expansion of the air, and consequently a greater capacity for moisture removal;

When heat energy is applied however, the entire process is accelerated because energy is absorbed (not from the ambient material and air as this is normally well below the temperature of the heat source) to heat the substrate and the contained water to the point of boiling, supplying latent energy for change of state to a vapour.

• Simple to operate
• Very economical – low OpEx
• Very easy to maintain
• Low maintenance costs
• Stop/start under full load
• 1 minute to full production
• No product breakage
• Condensate water recovery
• Instant shut down

The combination of SBD and MIR technologies have resulted in an extremely energy efficient system of between 40 – 70%.

Results obtained through testwork using the systems in combination indicates a coefficient of performance far higher than unity.

CECMS can also supply pin-mixers and extruders that can be used for preparation of granules that have a higher energy absorption. In combination with a binder, this technology can be used to form hard, water-proof extrusions that do not saturate and can be easily handled for transport in wet environments.
