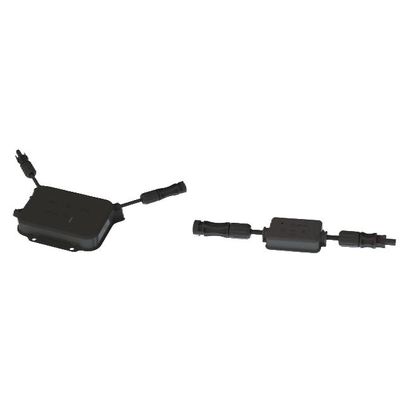

SUNGO - MLPE Rapid Shutdown Device and Controller

• Easy operation, fast installation.
• plug-and-play
• Use with two PV modules connected in parallel.

• Voltage after shut down:<2V
• Reaction time: ≤5s

All designs followed the safety standard of NEC2017 & 2020 690.12 Certified by both TUV and CSA.

Advantages: Convenient, Safe, Reliable

• Adopt the DC Carrier Communication Control turn-off module, non-wireless transmission, strong
• anti-interference, no additional cable needed and easy installation.
• Auto detection of routes on-off conducting status, auto cut off connection between modules, auto recover.
• Manually turn-off is also available without automatic recover and safer for maintenance.
• Exquisite design, optimized material selection, stand harsh environment.

Perfect Combination of Master-subordinate Smart module

• The shut-down PV module system consists of Master and Subordinate modules. The Master controller detects route condition by SCM software technology and sends command of switch control.
• All the subordinate modules only need to follow the recepted commands and excecute the rapid shut down operation neatly and reliably.
• Standard communication port enables remotenet-connection for monitoring and control.

Excellent Cost Performance and Easy operation

• Automatic and manual operation compatible.
• High quality-cost ratio, simple to install and use.

Meet the Latest Safety Standard

• All designs followed the safety standard of 2017NEC690.12, Certified by both TUV and CSA.
•  Materials selected as outer Lid, electronic components, PCB board, soldering materials and etc. comply with the international IEC safety standard.
• Configurable RS485 communicates port, wirelesscommunication module, bluetooth module and etc, EMC index follow international standard.
