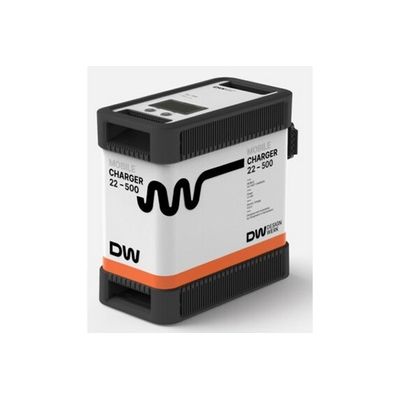

DesignWerk - Model 22-500 -Mobile DC Fast Charger
The third generation: new air cooling, state-of-the-art SiC semiconductors and an intelligent circuit topology. Whether in fleet operations, in the car repair shop, at vehicle manufacturers or during events. With the flexible Mobile Charger 22-500 you can charge quickly anywhere at up to 150 kilometers per hour. The mobile device can be configured in a variety of ways and reliably makes your electric vehicles ready for use again.
Most popular related searches
- Dimensions LxWxH : 500 × 240 × 440 (without trolley)
- Weight : 34 kg (without cable)
- AC input data : 22 kW, 3 x 32 A, 400 V +- 10 %, 45–65 Hz
- AC plug type : CEE 32, CEE 16, 3P + N + PE
- DC output data : 21 kW, 60 A, 250-500 V
- DC connector type : CCS Type 2, CCS Type 1, CHAdeMO, GB/T
- Efficiency : >96% from 30% load
- Power factor : >0.99 from 50% load
- Compliance and safety : CE, 2014/35/EC, IEC 61851, IEC61000-6-2,-3
- Charging standard : DIN70121, ISO15118, CHAdeMO Ver.1.2/2.0, GB/T-27930-2015
