Designwerk Technologies AG

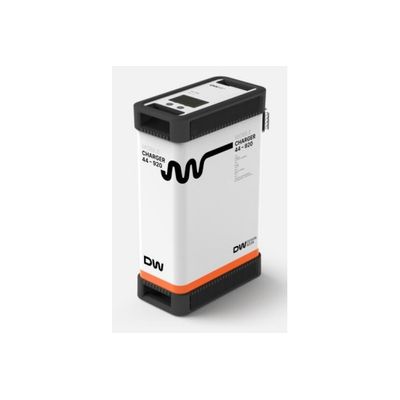

DesignWerk - Model 44-920 -Mobile DC Fast Charger
The third generation: new air cooling, state-of-the-art SiC semiconductors and an intelligent circuit topology.
Regardless of whether it is used in the automotive industry, in bus and truck depots or for charging the latest generation of electric vehicles - with the flexible and transportable Mobile Charger 44-920 you can charge at up to 300 kilometers per hour regardless of location. And it is flexible, stable and reliable.
Most popular related searches
- Dimensions LxWxH : 500 × 240 × 730 (without trolley)
- Weight : 58 kg (without cable)
- AC input data : 44 kW, 3 x 63 A, 400 V +- 10 %, 45–65 Hz
- AC plug type : CEE 63, CEE 32, CEE 16, 3P + N + PE
- DC output data : 42 kW, 120 A, 250–1,000 V
- DC connector type : CCS Type 2, CCS Type 1, CHAdeMO, GB/T
- Efficiency : >96% from 15% load
- Power factor : >0.99 from 25% load
- Compliance and safety : CE, 2014/35/EC, IEC 61851, IEC61000-6-2,-3
- Charging standard : DIN70121, ISO15118, CHAdeMO-Ver.1.2/2.0 (limited to 500VDC), GB / T-27930-2015
